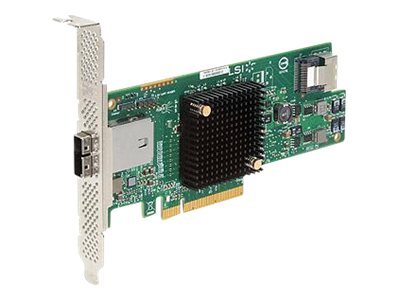

LSI SAS 9207-4i4e (kit), 4-Port Int, 4-Port Ext, 6Gb/s SATA+SAS, PCIe 3.0 HBA
LSI00304
LSI SAS 9207-4i4e (kit), 4-Port Int, 4-Port Ext, 6Gb/s SATA+SAS, PCIe 3.0 HBA
Sorry, but this product is no longer available to purchase online.
Please contact us to discuss alternative products which may be suitable.
Please contact us to discuss alternative products which may be suitable.
Product Description
LSI Logic SAS/SATA Controller SAS9207-4i4e Kit LSI00304 SAS/SATA 6gbit 8-Port; One x4 Internal SFF8087, One x4 External SFF8088; PCI-Express-v3.0-x8; Non-RAID
LSI SAS 9207-4i4e
4-Port Int, 4-Port Ext, 6Gb/s SATA+SAS, PCIe3.0 HBA
Part #: LSI00303
Features
- 4 Internal and 4 external 6Gb/s SAS+SATA ports
- 8 lanes, PCI Express 3.0
- Low profile form factor design
- One x4 mini-SAS internal connector (SFF8087), One x4 mini-SAS external connector (SFF8088)
- LSISAS2308 6Gb/s SAS+SATA Controller
- Supports up to 256 SAS or SATA end devices
- Supports SSDs, HDDs and tape drives
- Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
- 8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applicationss
- High performance with 6Gb/s data transfer rates
Specifications
| Product Description | 4-Port Int, 4-Port Ext, 6Gb/s SATA+SAS, PCIe3.0 HBA & documentation CD | |
| IO Controller | LSI SAS2308/ Fusion MPT 2.0 | |
| Storage Connectivity Data Transfer Rates | 8 ports, 6Gb/s SAS 2.1 Compliant | |
| SAS Bandwidth | Half Duplex 600 MB/s per lane |
|
| Port Configurations | 4 ea, x1 internal ports (individual drives) 4 ea, x1 external ports 1ea, x4 external wide port |
|
| Host Bus | x8 lane, PCI Express 3.0 compliant | |
| PCI Data Burst Transfer Rates | Half Duplex x8, PCIe, 4000 MB/s |
|
| Physical Dimensions | Low Profile (2.6" x 6.6") | |
| Connectors | One x4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088) | |
| Brackets | Full height and low profile | |
| Cable Support | Passive Copper | |
| PCI Card Type | 3.3 V Add-in Card | |
| Operating Voltage | +12V +/-8%; 3.3V +/-9% | |
| PCI Power (Nominal) | 9.8W | |
| Device Support | 256 SAS+SATA devices | |
| Environmental | Operating 0°C to 55°C 5 to 90% Non-condensing |
Storage -45°C to 105°C 5 to 90% Non-condensing |
| MTBF | >2,000,000 | |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS 6 of 6; WEEE | |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/channel/ChannelDownloads for details on versions and support |
|
| Warranty | 3 years; with advanced replacement option Free technical support at http://www.lsi.com/channel/support |
|
| Package Weight (lbs/kg) | 1.4 lb/ 0.64 kg | |
| Package Dimensions (inches/cm) | 6" x 10.25" x 1.625" 15.2 x 26 x 4.1 |
|
General
Stock code
SciSA92744K
Brand
LSI Logic
Series
SAS/SATA Controller
Model
SAS9207-4i4e Kit LSI00304
ROHS
Y
Type
Date added
22/06/2012
Information
Guarantee
3yr
Processor
LSI SAS2308/ Fusion MPT 2.0
Total Drives
8
RAID Levels
Non-RAID
OS Support - Windows
Windows
OS Support - Linux
Linux - SuSE, Red Hat
OS Support - Other
Solaris, VMware, FreeBSD
Connections
Main Type (Socket)
SAS/SATA
Sub Type (Socket)
SFF-8087 (Internal)
Internal Ports (#1)
1
External Ports (#2)
1
Card Connection
PCI-E v3 8X
Physical
Weight
0.64kg
