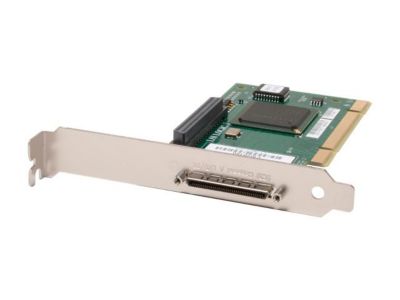

LSI 20160B Ultra160 SCSI RAID

LSI 20160B Ultra160 SCSI RAID
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?

Order this product before 4.30pm today and get it delivered for only £9.20* on 14th Jun 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Product Description
  • PCI, Ultra160 SCSI, Single-Channel Host Bus Adapter
  • Features Single Ultra160 SCSI channel that allow data transfer rates of 160 MB/s
  • Supports up to 15 devices
  • Single-channel Ultra160 SCSI Card
  • 32-bit,  PCI host bus
  • 160 MBps data transfer rates
  • Standard PCI card
  • SureLINK™ technology
  • Connects up to 15 internal/external devices
  • Supports all major Operating Systems
  • RoHS compliant
  • Three-year standard warranty


  • Int/Ext 68-pin VHDCI connectors
  • Single Channel Host Adapter
  • 160MB/s data transfer rate/channel
  • PCI interface
  • Ideal for 1U/2U rack servers
  • One-button disaster recovery

PCI Bus 32-bit, 33MHz max
PCI Modes Bus Master DMA
PCI Data Burst Transfer Rate 132MB/s (32-bit bus @ 33MHz)
PCI Card Type Universal Add-in Card
PCI Voltage +5V ±5%
PCI Form Factor 4.721” x 2.53”
PCI Power 7.5W, 1.5A @ +5VDC
Bracket ISA/EISA and Low Profile Option
Certification Level PCI 2.2, PC 99 Compliant
SCSI Bus Wide Ultra160, LVD (Low Voltage Differential) and Wide Ultra SE (Single-Ended)
SAS Processor LSI53C1000
Internal: 68-pin HD External: 68-pin VHDCI
Termination Universal (LVD/SE) Termination
Automatic Cable Detection
Software Disable
Jumper Disable Option (not populated on standard board)
Termination Power Self-resetting 1.5A fuse
LED Indicators 4-pin header for off-board LEDs
BIOS Flash Memory 128k x8 Flash EEPROM
Subsystem ID SVID – 1000h
SSIS – 1060h
Relative Humidity
0°C to 55°C
5 to 90% Non-condensing
-45°C to 105°C
5 to 90% Non-condensing
MTFB >500,000 Hours
Compliances CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO
OS Support Microsoft® Windows® Me, NT4.0, SP4 and above, 2000, 200SPI and XP
Red Hat® Linux® 2.2 and 2.4 Kernels
Novell® NetWare® 4.11, 4.2, 5x
UnixWare® 2.12 and 7x
SCO Unix 5x
OS/2 3.0 or greater
Solaris x86 Versions 2.6, 2.7 and 2.8
Sun Solaris Version 2.6 and later, Open Boot PROM Version 3.0 or greater
Utilities Install, Flash, SCSI Format, BIOS Configuration and NT Configuration
Domain Validation Microsoft® Windows® NT, 2000 and XP/Levels 1, 2 and 3
Data Protection CRC and AIP
Device Support OBDR (Tape Booting) and Bootable CD-ROM
Ordering Information LSI20160 Single     P/N: LSI20160B-F
Warranty 3 years, advanced replacement option, free advanced technical support at
