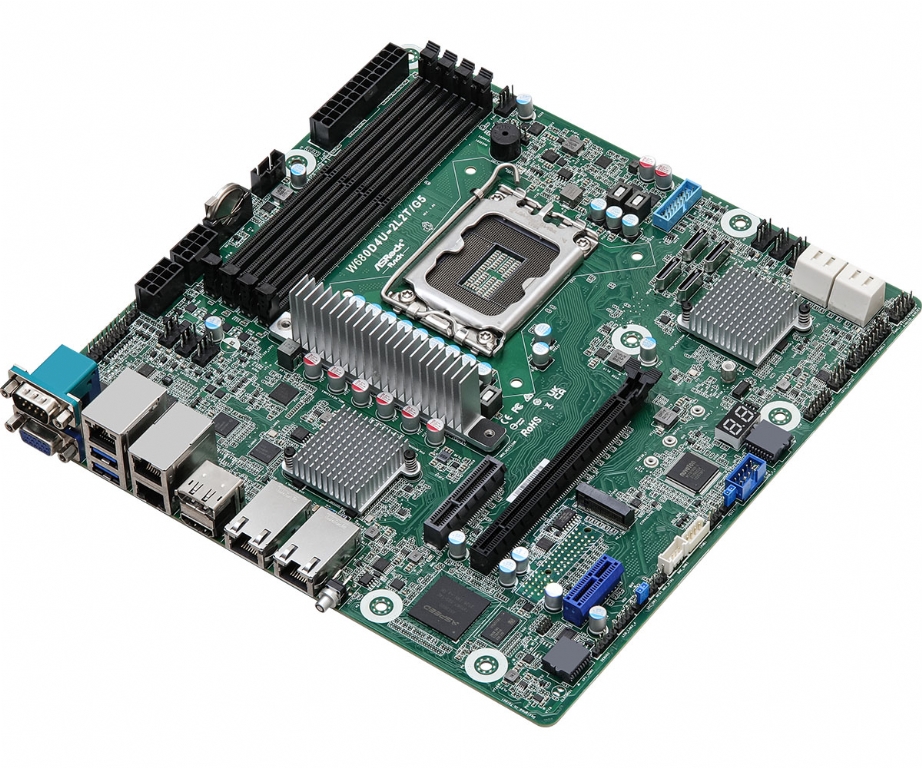

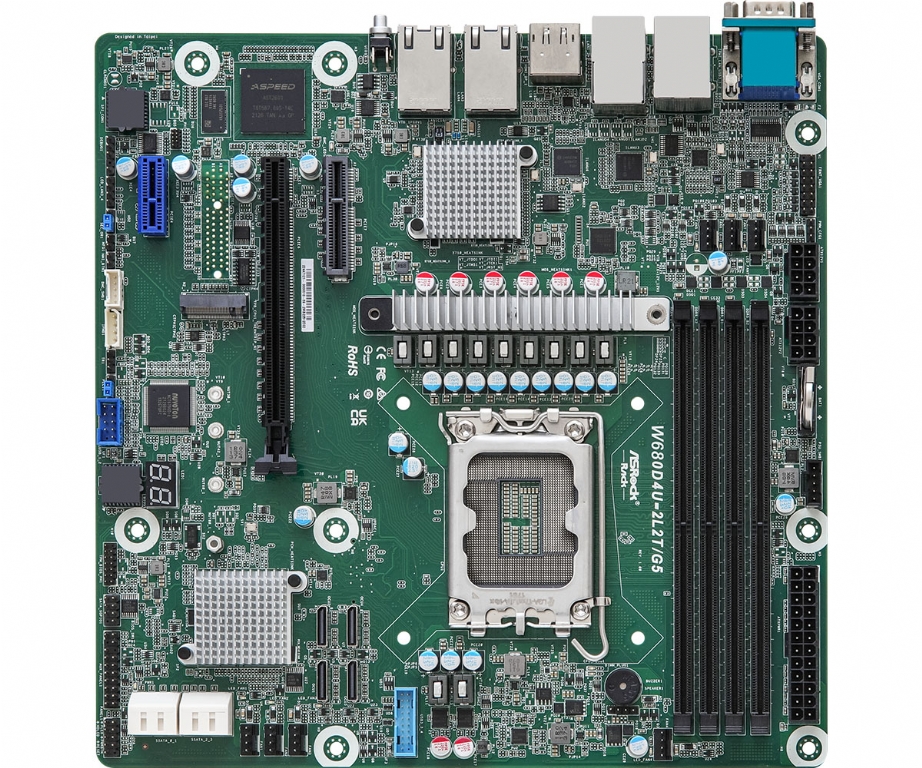

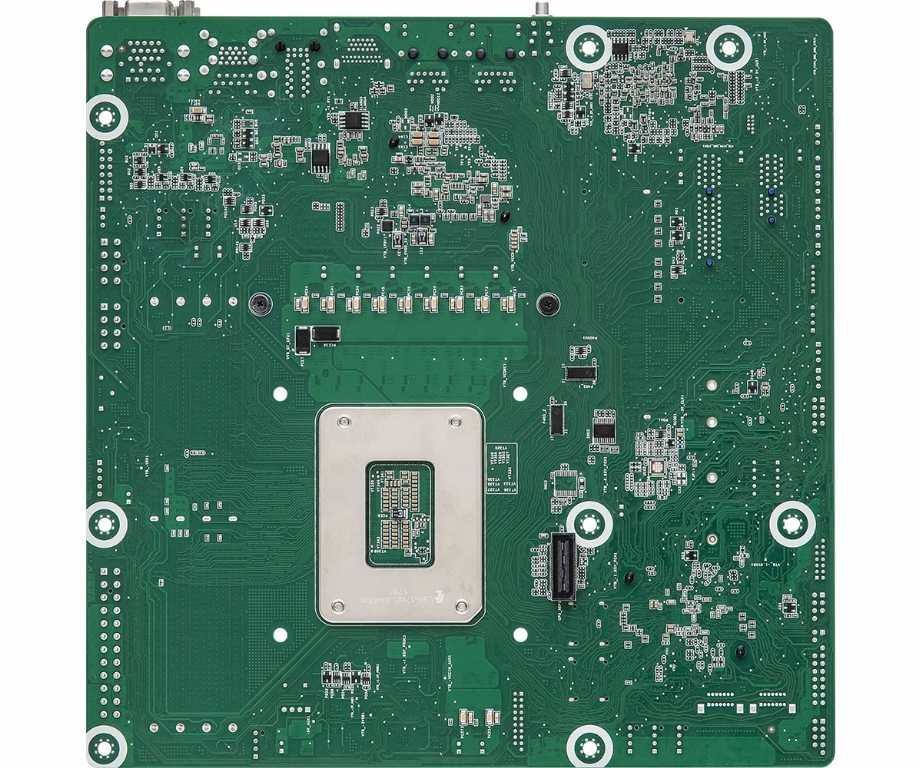

ASRock Rack W680D4U-2L2T/G5, Intel W680, S 1700, DDR5, SATA3, Single M.2, Dual 10GbE, Dual Gigabit LAN, Realtek Mgmt LAN, USB 3.2, MicroATX
W680D4U-2L2T/G5
ASRock Rack W680D4U-2L2T/G5, Intel W680, S 1700, DDR5, SATA3, Single M.2, Dual 10GbE, Dual Gigabit LAN, Realtek Mgmt LAN, USB 3.2, MicroATX
£567.60
ex. VAT
(£681.12
inc. VAT)
This product is currently out of stock.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Product Description
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6'' x 9.6'' (244 mm x 244 mm) |
| Processor System | |
| CPU | Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™ series processors |
| Socket | Single Socket LGA 1700 |
| Thermal Design Power | 125W |
| Chipset | Intel® W680 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 32GB |
| Max. DIMM Frequency | 4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 | SLOT7: PCIe4.0 x4 [CPU] |
| PCIe x 1 | SLOT4: PCIe3.0 x1 [PCH] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor |
| OCuLink | 1 OCuLink (PCIe4.0 x4)* [CPU] 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH] 2 OCuLink (PCIe4.0 x4) [PCH] *OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated. |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel W680 (up to 8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 OCuLink for SATA |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X710 2 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) Intel® Integrated Processor Graphics: 1 HDMI, 1 DisplayPort |
| Rear I/O | |
| UID Button/LED | 1 button w/ LED |
| VGA Port | 1 DB15 (VGA), 1 HDMI, 1 DisplayPort |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |

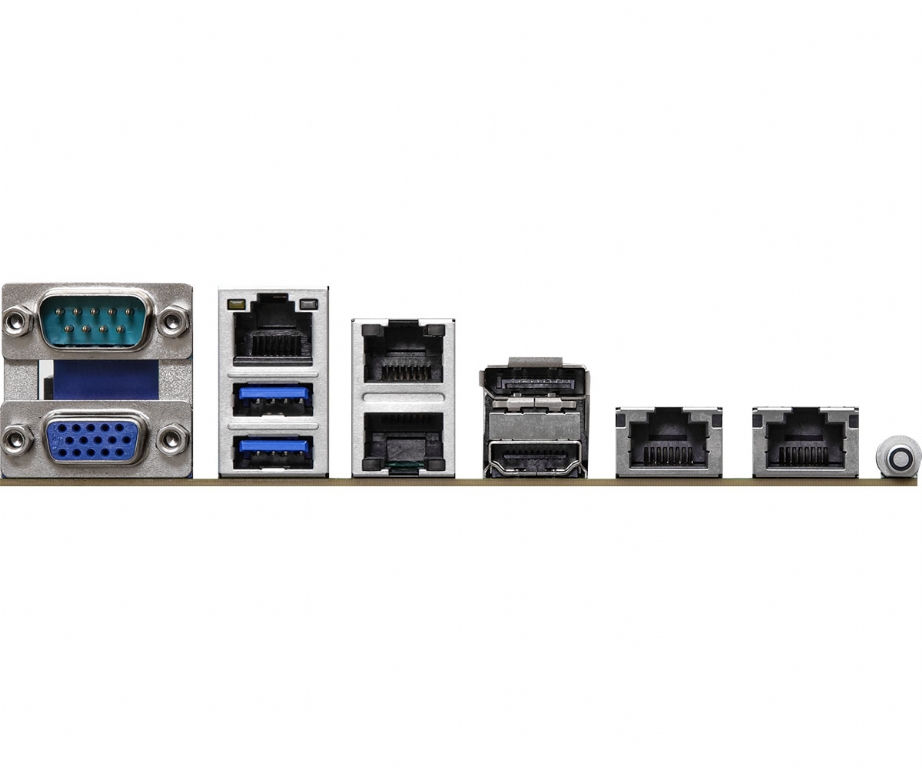

| RJ45 | 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header | 1 |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 7 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 (4-pin, LAN3/LAN4 LED) |
| ME/SPS Recovery | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, VR, M.2, X710, TR Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12V |
| Supported OS | |
| OS | Windows® 10 (64bit) Windows® 11 (64 bit) |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
Reviews
Customer Reviews
There are currently no reviews against this product. Be the first to write a review!
Write a Review
Compatible Products
Server Chassis
In Win IW-IOSHIELD-W680D4U-2L2T

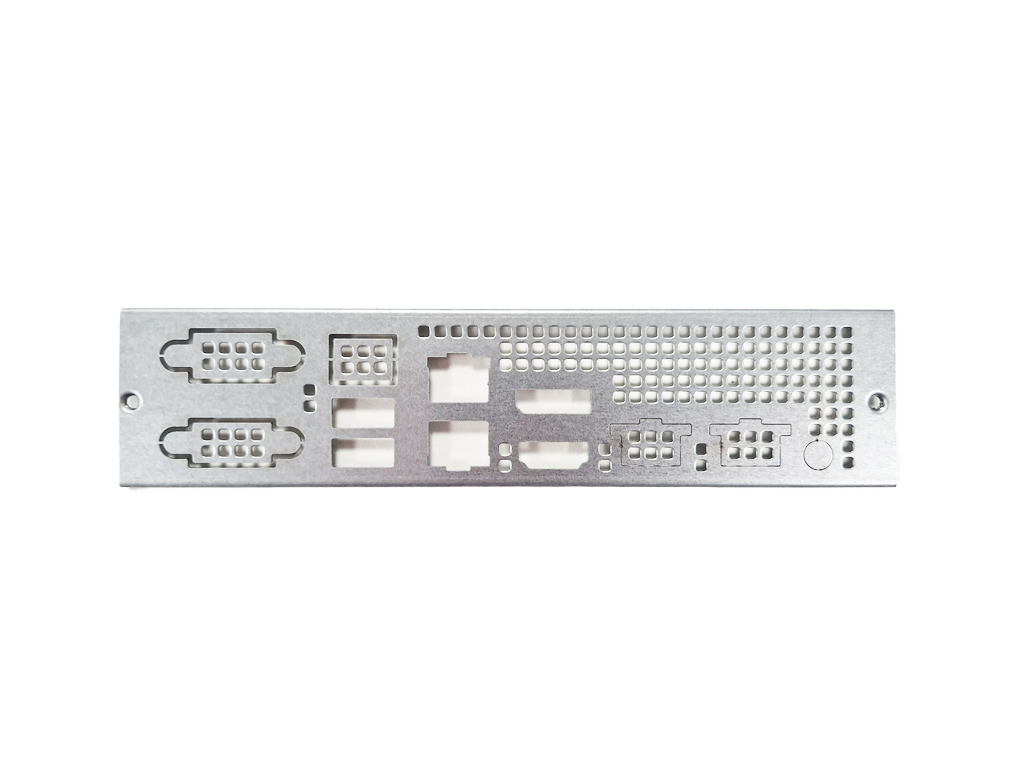

In-Win 1U IO Shield for ASRock Rack W680D4U-2L2T Motherboard
