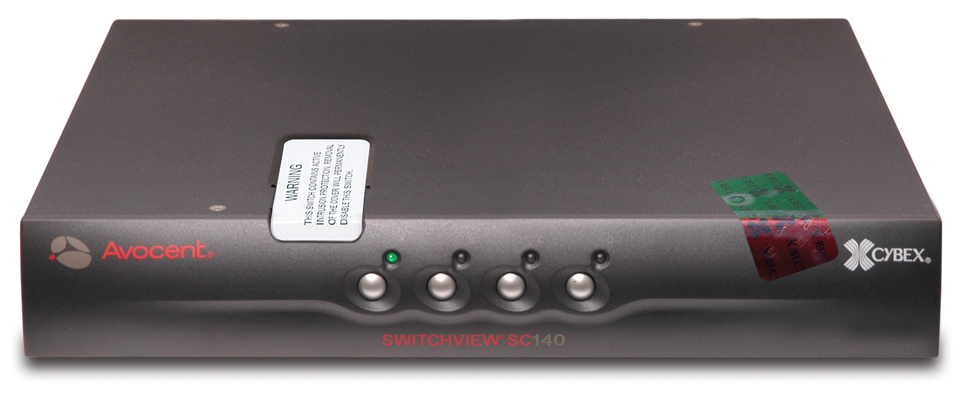

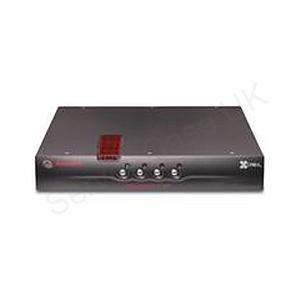

Avocent 1 x 4 SwitchView SC140 KVM Switch PS/2/USB/VGA Intrusion Detection with UK Power Supply

The Avocent SwitchView SC100 and SC200 KVM switch series offers proven, secure access for any desktop environment where security is mandatory.



Both the SwitchView SC100 and SC200 switches include three layers of tamper-proof hardware security at the desktop. In addition, SwitchView SC100 and SC200 switches ensure that only USB human interface devices (HIDs) function on target computers by constantly monitoring all devices attached to the console ports. These switches ignore communication from non-HIDs (such as flash drives, Hard Drives, cameras and printers) when switching data to the target. In situations where the only USB port(s) for HIDs are enabled on the target computer, the SwitchView SC switch will not introduce security vulnerabilities. The SwitchView SC100 and SC200 switches offer support for USB and/or PS/2 peripherals and target computers.Features

• Secure Channels: Two to eight secure channels
• Locked Memory: Prevents tampering and reprogramming of the firmware
• Tamper-Evident Tape: A visual indication of an attempt to gain access to the internal components of the switch
• Software Security: U.S designed firmware allows only keyboard and mouse human interface devices (HIDs) to switch to the target computers
• Clears buffer: Automatically clears the keyboard buffer immediately after data is transmitted through the switch, so no data is ever left in the switch
• Chassis Intrusion Detection: Prevents malicious tampering with the switch. If the cover is removed from the switch, the switch becomes inoperable and the LEDs flash

Specifications

Compliance
Certifications	CE � UL 60950-1 � CSA C22.2 No 60950-1 � EN60950 � FCC Part 15 Class B � EN55022 Class B � EN55024 61000-3-3 � VCCI Class B � C-Tick CISPR22 � ICES-003
Display
Monitor Resolution Support	2048 x 1536 Pixels
Screen Type	VGA � SVGA � SXGA � UXGA � WVGA � WSVGA � WXGA � WSXGA � WUXGA � XGA
Electrical
Power Supply	Power Adaptor Included
Electrical Voltage	100 to 240VAC
Electrical Frequency	50 to 60Hz
Environmental
Operating Temperature	Operating Temperature 0 to 40�C
Operating Humidity	Humidity 10 to 95%
General
Model Name	SC140
Product Family	SwitchView
Product Type	KVM Switch
Warranty	2 Year Warranty
Barcode	0636430043821
Interfaces/Ports
PC Keyboard Port(s)	4
PC Mouse Port(s)	4
PC Monitor Port(s)	4
Console Keyboard Port	1
Console Mouse Port	1
Console Monitor Port	1
KVM Ports	4 PC Port(s) x 1 Console Port(s)
