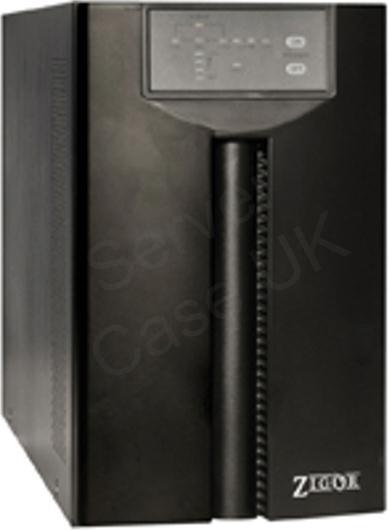

Zigor Volga 2kVA Digital On Line Tower UPS (Black)

The Volga series On-Line double conversion in high frequency, from 1 to 10 kVA, are ideal for supplying critical systems that require high reliability and quality supply with low operating and maintenance costs. Volga series UPSs make use of the advantages of PWM technology with IGTBs to obtain equipment with high technical features. They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 10kVA that require a high reliability and quality supply with low operating and maintenance costs.



Data is provided locally through mimic panel with LEDs and/ or LCD display (for range =6 kVA), according to UPS model. The communications interface, together with its powerful software, allow users to monitor the status of the unit and provides information on its environment.Features

• Power: 2000 VA/1400 W
• UPS DIGITAL ON-LINE double conversion
• Microprocessor digital control technology
• Acoustic and luminous signalling
• Wide input voltage range
• Battery mode start up (without mains lines)
• Protections against overloads, short-circuits & low battery voltage
• RS232 Connection and Software included for System Monitoring
• Cables also included: 2xIEC cables
• Autonomy up to 30 min (depending on load)
• Programable shutdown
• High input power factor
• One year warranty

Specifications

Attributes
Waveform Type	Sinewave
Compliance
Performance	EN 62040-1-1:2003 / EN 50091-2:1996 / EN 61000-3-2:2000 y EN 61000-3-3:1995+A1:2001
Electrical
Battery Type	Valve Regulated Lead Acid
Typical Recharge Time	8 Hours
Output Capacity	2kVA
Output Wattage	1.4kW
Output Voltage	230V AC
Max Configurable Capacity	2kVA
Input Voltage Range	166 to 276V AC
Input Configuration	Single Phase
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	45dbA
Filtering
Output Distortion	less than 3%
Crest Factor	3 : 1
General
Model Name	Volga
Warranty	One year.
Barcode	8436047680721
Interfaces/Ports
Output Connections	6 x IEC 320 C13
Interface Port	1 x RS232
Physical
Case Colour	Black
Dimensions	9.0cm (W) x 32.5cm (D) x 16.5cm (H) - Weight 35.0kg
