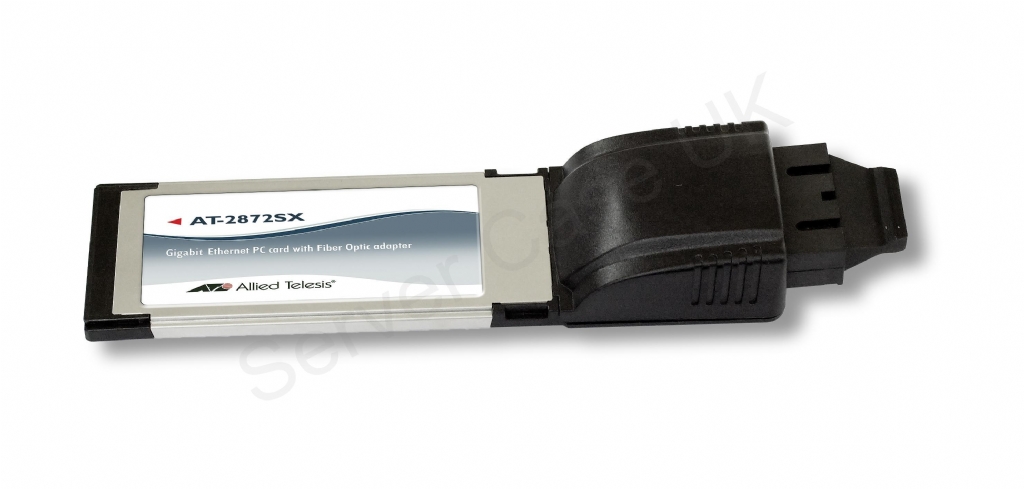

Allied Telesis AT-2872SX Gigabit Fiber ExpressCard Network Interface Card 1000Mbps, 34mm, with SC connector

The AT-2872SX (1000SX with SC 34mm Fiber ExpressCard) Network Interface Card is an ideal fit for fiber to the laptop networks that depend on secure and reliable systems. The single piece, integrated design of the AT-2872SX endures frequent use with no damage to the fiber connectors, making it a solid solution for military and government. Allied Telesis�AT-2872SX ExpressCard is designed to provide notebook computers with network connections through a high-speed fiber-optic link via a 34mm ExpressCard interface.The AT-2872SX card features an SC fiber connection, supports the Microsoft XP, Vista and Windows 7 operating systems, and is compliant with industry standards. Allied Telesis�AT-2872SX interface cards feature software to assist users with network setup and configurations. An offline user diagnostics program provides system administrators and engineers with a valuable tool to analyze the interface card and check data. All Allied Telesis Network Interface Cards offer technical support, ensuring trouble-free installation.

Features

• VLAN support
• Jumbo frames
• Checksum offloading
• Secure transmissions
• Windows Vista / Windows 7
• IEEE 802.1x flow control
• IEEE 802.1p-based traffic prioritization
• PXE remote boot support
• Microsoft Certified Drivers
• RoHS Compliant
• CPU task offload
• TCP segmentation
• SNMP
• Wake-on-LAN (WoL) supported (enabled by default, utility to disable available in firmware)

Specifications

Compliance
Safety	UL60950-1 (cULUS), EN60950-1 (TUV) EN60825
EMI	EMI part 15: FCC class A, EN55022 class A, VCCI class A, C-Tick, CE � ExpressCard compliant
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 5 to 95%
General
Model Name	AT-2872SX
Barcode	0767035191935
Physical
Status Indicators	1 LED indicating link/activity
Pack Quantity	1
Dimensions	13.7cm (W) x 3.4cm (H)
System Requirements
Operating Systems Supported	Windows XP � Windows Vista � Windows 7 � Linux
