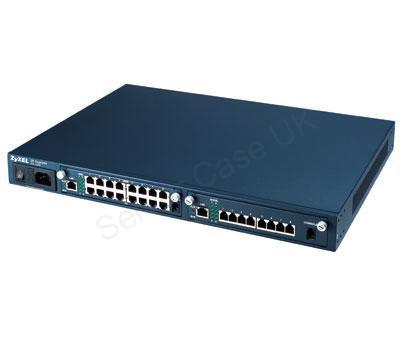

ZyXEL IES-1000M 1U 2 slot Mini MSAN Chassis (DC)

A stand-alone mini IP DSLAM, the IES-1000 supports standard SHDSL technology, ADSL and ADSL2+ over POTS/ISDN with built-in CO splitter. Each IES-1000 has two slide-in slots where either 8-port SHDSL line cards or 8-port ADSL line cards or 12-port ADSL2+ with built-in CO splitters can be installed. The network administrator may determine the line-card combination to be used. Each ADSL or SHDSL module supports one 10/100BaseT Fast Ethernet interface as an uplink port. Each ADSL2+ module can support two 10/100BaseT Fast Ethernet interface as an uplink port.



Each product within the IP Express family is manageable by telnet, local console port, or SNMP. ZyXEL offers a powerful, yet user-friendly Element Management System (EMS), NetAtlas, which behaves as a SNMP Manger to perform fault, security, performance, and configuration management. The NetAtlas is designed to allow several concurrent administrators to simultaneously manage hundreds of IP Express IP DSLAMs. In order to satisfy the cost and performance needs of customer needs, the NetAtlas can operate upon two OS platforms: Windows 2000 and HP OpenViewFeatures

• IP DSLAM with 2 x 8 ports
• 1U Height, 100-240V AC
• ADSL (Annex A or Annex B), G.SHDSL
• 802.1p, 802.1q, 802.3x
• IGMP Snooping, DHCP Relay option 82
• WEB GUI, SNMP, FTP, TFTP

Specifications

General
Product Type	Network Module
Barcode	4718937502530
Physical
Dimensions	44.0cm (W) x 32.0cm (D) x 4.45cm (H)
