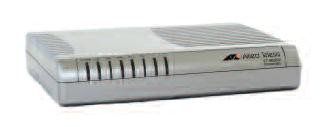

Allied Telesis AT-iMG624A-R2 ADSL Multiservice Gateway with Analog VoIP Ports

The AT-iMG624-R2 ADSL gateways provides an evolution to the iMG624 family, with enhanced performance. The iMG624-R2 intelligent Multiservice Gateways provide multiple IP-based broadband services to the home over a high-speed, alwayson broadband connection.The combined delivery of video and data - benefits both service providers and their customers. Service providers can quickly deliver advanced services such as fast Internet, IPTV and Video on Demand in a scalable way with complete remote management. End users benefit by having a unique device interconnecting all peripherals, computers, to a single broadband uplink. The iMG600 family is optimized for IP video streaming.The iMG �snoops� IGMP packets intransit allowing simultaneous delivery of different multicast transmissions such as different movies or TV channels.This enables multiple high quality, high bit-rate video streams without impacting data traffic or IP telephony while delivering the fast channel change that users expect from video services. MPEG video service management and diagnosis is possible through dedicated commands and video quality can be monitored using Allied Telesis� unique MPEG stream monitoring tool.



The iMG600 family supports industry leading Quality of Service (QoS) through ISO Layer 2 and 3 prioritization techniques including priority tagging with IEEE 802.1p,Type of Service and DSCP fields.The extensive support for per port rate-limiting in the iMG600 series enables service providers to deliver tiered data services for the wide spectrum of end customer profiles, providing maximum flexibility in service differentiation. Security is assured by an integral Stateful Inspection Firewall with NAT and an Intrusion Detection System (IDS) to protect end-users� networks from Denial of Service (DoS), port scanning and Web spoofing. The iMG600 series is designed to be easy to deploy and manage. With the AlliedView- NMS software platform, the iMG600 series can be remotely provisioned and managed. In addition, the industry standard TR-069 is fully integrated and provides efficient, scalable and secure provisioning and support for a wide variety of Triple Play services.Features

• ADSL2+ WAN interface
• Stateful Inspection Firewall / NAT
• DMZ support
• Access Control List (ACL)
• Intrusion Detection System: DoS, Port Scanning and Web Spoofing protection
• AlliedView-NMS and TR-069 support
• RoHS Compliant

Specifications

Compliance
Standards	EN 50385:2002, EN 300 386 v1.3.2 (2003-05), EN 301 489-1 v1.6.1 (2005-09), EN 301 489-17 v1.2.1 (2002-08)
Electrical
AC Input Voltage	100 to 240VAC
Voltage/Power/Frequency	50 to 60Hz
Maximum Power Consumption	13W
Environmental
Environmental	Operating Temperature 0 to 45�C - Humidity 10 to 90%
Ethernet
Protocols Supported	PPPoE, PPPoA, IPoA, RFC 1483 routed and bridged, Virtual Global IP address pool, DNS, Static and Dynamic IP address assignment
General
Model Name	AT-iMG624A-R2
Barcode	767035183275
Interfaces/Ports
LAN Ports	4 x RJ-45 10/100Mbps
Memory
Memory (Maximum)	32MB
Flash Memory	8MB
Physical
LED Status Indicators	Power, System, ADSL, Training/Link, LANx4, Link/Activity
Dimensions	15.2cm (W) x 4.5cm (D) x 2.1cm (H) - Weight 0.44kg
Security
Security	Stateful Inspection Firewall, Dynamic port opening, Intrusion Detection and Blocking System, Access Control List, IPSec/VPN passthrough, PAP/CHAP authentication
System
Management	AlliedView NMS, TR-069, Telnet, Remote software upgrade, Web GUI, CLI, SNMP v1, v2 and v3
