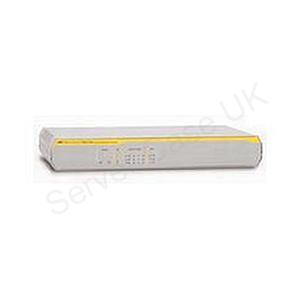

Allied Telesis Secure 5port 10/100 Multiprotocol Modular Router + PIC Slot

The AT-AR415S is a secure modular router offering performance, flexibility and security for small to medium-sized business. Packaged in a compact one-rack unit chassis, this versatile router provides five 10/100 Fast Ethernet interfaces and supports a variety of Port Interface Cards (PICs). For the WAN network, the AT-AR415S features one 10/100Mbps Ethernet Port. Also offered is an asynchronous port, and four Layer 2 switched LAN ports�any of which can also be reconfigured as a DMZ. A range of different PICs can be plugged into the PIC bay, including high speed E1/T1,V35/V21 sync and BRI/PRI ISDN, allowing a high degree of flexibility and a wide choice of WAN connectivity.The onboard management/async port can be used for local management or for connection to an external modem.



The AT-AR415S also has integrated hardware Virtual Private Network (VPN) acceleration delivering up to 95 Mbps of 3DES VPN + NAT and firewall throughput and up to 80 Mbps of AES-256 VPN + NAT and firewall throughput The AT-AR415S secure modular router supports the Advanced Encryption Standard (AES). AES is a Federal Information Processing Standard (FIPS 197) that specifies a cryptographic algorithm for use by U.S. Government organizations to protect sensitive, unclassified information. The AT-AR415S security router is 802.1Q compliant.This enables the user to configure up to 64 VLANs with VLAN Identifier numbers (VID) between one and 4,094.Features

• 1 PIC bay supporting a range of WAN connections
• 1 Ethernet 10/100Mbps WAN port
• 4 Ethernet 10/100Mbps LAN ports
• 1 Async port
• Stateful inspection firewall
• AES, 3DES, DES hardware based encryption
• MD5 / SHA
• Up to 50 VPN tunnels2
• Supports Windows XP, 2000 VPN clients that use pre-shared keys and X509 Certificates
• PPPoE
• Protection against Denial of Service attacks
• SSH / SSL
• 802.1x
• SMTP and HTTP proxy
• RADIUS / TACAS+ look-up
• PAP / CHAP user authentication
• RoHS Compliant

Specifications

Compliance
Safety	UL60950, CAN/CSA-C22.2NO. 60950- 00, EN60950
EMI	EN55022 class A, FCC class A, VCCI class A, AS/NZS CISPR22 class A
Immunity	EN55024
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Environmental
Environmental	Humidity 5 to 95% Operating Temperature 0 to 40�C
General
Barcode	0767035180373
Interfaces/Ports
LAN Ports	4 port(s) x 10/100Mbps
WAN Ports	1 port(s) x 10/100Mbps
Serial Ports	1 x RS232
Physical
Dimensions	30.5cm (W) x 19.0cm (D) - Weight 1.75kg
Rack Units	1U
Router
Router Type	ISDN
Security
Security	RFC 959 FTP � RFC 1413 IDP � RFC 1492 TACACS � RFC 1779 X.500 String Representation of Distinguished � Names. � RFC 1858 Fragmentation � RFC 2284 EAP � RFC 2510 PKI X.509 Certificate Management Protocols � RFC 2511 X.509 Certificate Request Message Format � RFC 2559 PKI X.509 LDAPv2 � RFC 2585 PKI X.509 Operational Protocols � RFC 2587 PKI X.509 LDAPv2 Schema � RFC 2865 RADIUS � RFC 2866 RADIUS Accounting � RFC 3280 X.509 Certificate and CRL profile draft-grant-tacacs-02.txt TACACS+ � Draft-IETF-PKIX-CMP-Transport-Protocols-01 Transport � Protocols for CMP draft-ylonen-ssh-protocol-00.txt SSH Remote Login Protocol � IEEE 802.1x Port Based Network Access Control � PKCS 10 Certificate Request Syntax Standard � Diffie-Hellman
User Authentication	RADIUS,TACACS, MD5, PAP, CHAP
Telecommunications
G.711 Compression	Yes
G.729ab Compression	Yes
