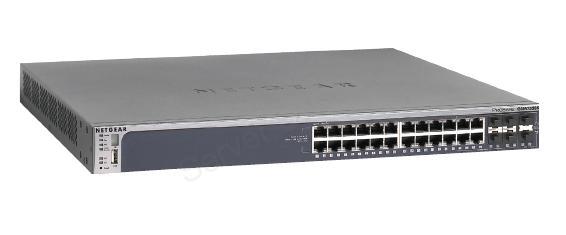

Netgear GSM7328S (V1) IPV6 ProSafe 24 & 48 Port Layer 3 Managed Switches and Multicast Routing License Upgrade

The GSM7328S & GSM7352S are low-cost, stackable Gigabit Ethernet switches that deliver maximum throughput and flexibility where you need it - to high-speed, high-density workgroups at the edge of the network, in the backbone of growing networks or for bandwidth-thirsty file and application servers. The ProSafe GSM7328S and GSM7352S fully managed switches deliver 24 and 48 ports of auto-sensing 10/100/1000 Mbps interfaces for high-density copper connectivity. The four or eight Gigabit interfaces provide optional fiber connectivity for longer reach Gigabit Ethernet requirements. These cutting edge Layer 3 Managed Gigabit, Stackable Switches provide four high-speed module bays that offer modular expansion for 10-Gigabit Ethernet or 48 Gigabit stacking connectivity. These module bays provide unprecedented flexibility, whether you are stacking between switches, attaching bandwidth-thirsty file servers, or aggregating critical data to the core of your network. The non-blocking design of the switches delivers simultaneous, full wire-speed, low-latency throughput to every port. A full suite of Layer 3 switching functionality ensures reliable routing between virtual networks and network segmentation where and when you need it, at no additional cost. These Gigabit Stackable switches can be built into a stack of up to 8 units, creating a bi-directional ring. This set-up will provide a high-density network that can be managed straightforwardly via a single IP address. Robust security features include IEEE 802.1x port-based authentication and access control lists, ensuring that only authorised users can access your network. Secure management of the switches is available through Secure Sockets Layer (SSLv3) for the Web browser and Secured Shell (SSH) for command-line sessions. Additionally, multiple switches can be securely managed via SNMPv3 with NETGEAR's ProSafe Network Management Software NMS100. All these management features, plus the stacking ability and both gigabit and 10-gig connectivity combine to deliver a cost effective managed switching solution to organisations that need to keep an eye on budget. The high functionality of these Gigabit, Stackable switches make them ideal for delivering highly robust converged voice, video and data services over a single network infrastructure.



Any stack of GSM7328S and GSM7352S Gigabit Stackable switches are easy to manage and utilise via a single IP address. These advanced network switches provide management when required and no configuration is required to stack them - just connect them up. Once 3 or more switches are stacked together you can easily create a redundant, self-healing stack by placing a link between the first and last switch. This set-up will provide a redundant path through the stack and adds bandwidth. As with all NETGEAR switches, the GSM7328S, and GSM7352S Gigabit Stackable switches can be managed via a choice of user interfaces: Command Menu Interface via console port, Telnet remote login in or web-based management via browser.Features

• 24 or 48 Gigabit Ports
• 4 x 10-Gigabit High Speed Module Bays (separate modules available)
• 4 x 10/100/1000 Mbps Fiber SFP Combo Ports (separate modules available)
• Stacks up to 384 ports
• Layer 2 & Dynamic Layer 3 Switching
• Non-blocking design and full Quality of Service (QoS)
• Strong security (SSLv3, SSHv2, SNMPv3, 802.1X & RADIUS)
• Browser-based interface for easy & quick configuration

Specifications

Electrical
Voltage/Power/Frequency	80W
Environmental
Noise Level (full operating mode)	52dbA
Environmental	Operating Temperature 0 to 40�C - Humidity <90%
General
Model Name	G7328SIP6
Warranty	NETGEAR Lifetime Warranty (Lifetime warranty for product purchased after 05/01/2007. For product purchased before 05/01/2007, warranty is limited lifetime.)
Interfaces/Ports
Uplink Ports	RJ-45 , 10/100/1000Mbps , (24 RJ-45 (Auto Uplink on all ports))
Performance
Mean Time Between Failure (MTBF)	117,747 Hours
Physical
In The Box	ProSafe Gigabit L3 Managed Switch � Null modem cable � Rubber footpads � Power cable � Rack-mount kit � Installation Guide � Resource CD-ROM � Warranty/Support information card
Dimensions	44.0cm (W) x 38.5cm (D) x 4.3cm (H) - Weight 4.5kg
Routing
Layer 2 Services	IEEE 802.1Q Static VLAN (Up to 4k) � IEEE 802.1p Class of Service (CoS) � IEEE 802.1D Spanning Tree Protocol � IEEE 802.1v Protocol VLAN & Port � VLAN � IEEE 802.1 Q-inQ � IEEE 802.1w Rapid Spanning Tree � IEEE 802.1s Multiple Spanning Tree � IEEE 802.3ad Link Aggregation (LACP) up to 48 trunks � IEEE 802.1x Port Access Authentication � IGMP v1, v2 Snooping Support � Network Storm Protection including � Broadcast, multicast and unicast traffic � Static multicast filtering � Ingress Rate Limit in 1Kbps increments
Layer 3 Services	VLAN routing � Port routing � RIP v1/v2 (RFC 1057, 2453) � OSPF v2 (RFC 1583, 2328) � OSPF Equal Cost Multipath (ECMP) � VRRP (RFC 2338, 2787) 64 instances � ACLs - 1,024 Global � DiffServ QOS (RFC 2998) � DNS Caching � DHCP/Bootp Relay -primary and backup (RFC3046, option 82)
System
Security	SSLv3 � SSHv2 � SNMPv3 � 802.1X � RADIUS
