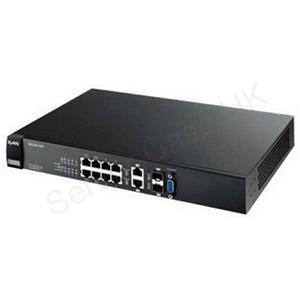

ZyXEL GS2200-8HP 8 port Gigabit L2 Managed PoE Switch
GS2200-8HP-GB0101FPlease contact us to discuss alternative products which may be suitable.
The ZyXEL GS2200 Series consists of five switches: GS2200-8, GS2200-8HP, GS2200-24, GS2200-24P and GS2200-48 providing 8/24/44 100/1000BASE-T PoE or non-PoE copper ports with 2/4 dual-personality GbE interfaces for RJ-45 100/1000BASE-T or fiber connectivity. The GS2200-8/24/48 Series is ideal for secure 100BASE and Gigabit connectivity, and it offers access security, advanced prioritization and traffic-monitoring capabilities.
Features
- Non-blocking, wire-speed transmission
- Non-blocking, wire-speed transmission
- Auto MDI/MDI-X support
- Auto MDI/MDI-X support
- IEEE 802.3az compliant (ES1100-16/24/24E)
- IEEE 802.3az compliant (ES1100-16/24/24E)
- Fanless design for silent operations (ES1100-8P/16/24/24E/24G)
- Fanless design for silent operations (ES1100-8P/16/24/24E/24G)
- IEEE 802.3x Flow control supported
- IEEE 802.3x Flow control supported
- IEEE 802.1p CoS supported
- IEEE 802.1p CoS supported
- IEEE 802.3af power on up to 4/8 ports (ES1100-8P/16P)
- IEEE 802.3af power on up to 4/8 ports (ES1100-8P/16P)
Specifications
| Compliance | |
| Standards Compliance | IEEE 802.3u 100BASE-Tx Ethernet • IEEE 802.ab 1000BASE-T Ethernet • IEEE 802.3z 1000BASE-X Ethernet • IEEE 802.3x flow control • IEEE 802.1D spanning tree protocol • IEEE 802.1w rapid spanning tree protocol • IEEE 802.1s multiple spanning tree protocol • IEEE 802.1p class of service, priority protocols • IEEE 802.1X port authentication • IEEE 802.3ad LACP aggregation • IEEE 802.af PoE (GS2200-24P) • IEEE 802.at PoE (GS2200-8HP) • IEEE 802.az EEE (Energy Efficient Ethernet) support (GS2200-8/8HP) |
| Standards Compliance | IEEE 802.3u 100BASE-Tx Ethernet • IEEE 802.ab 1000BASE-T Ethernet • IEEE 802.3z 1000BASE-X Ethernet • IEEE 802.3x flow control • IEEE 802.1D spanning tree protocol • IEEE 802.1w rapid spanning tree protocol • IEEE 802.1s multiple spanning tree protocol • IEEE 802.1p class of service, priority protocols • IEEE 802.1X port authentication • IEEE 802.3ad LACP aggregation • IEEE 802.af PoE (GS2200-24P) • IEEE 802.at PoE (GS2200-8HP) • IEEE 802.az EEE (Energy Efficient Ethernet) support (GS2200-8/8HP) |
| Safety | UL 60950-1 • CSA 60950-1 • EN 60950-1 • IEC 60950-1 • EU RoHS compliant • EMC:FCC, CE, CNS • BSMI • Reliability Test |
| Safety | UL 60950-1 • CSA 60950-1 • EN 60950-1 • IEC 60950-1 • EU RoHS compliant • EMC:FCC, CE, CNS • BSMI • Reliability Test |
| Electrical | |
| Voltage/Power/Frequency | 100 to 240VAC / 50 to 60Hz |
| Voltage/Power/Frequency | 100 to 240VAC / 50 to 60Hz |
| Environmental | |
| Environmental | Operating Temperature 0 to 50°C - Humidity 10 to 95% |
| Environmental | Operating Temperature 0 to 50°C - Humidity 10 to 95% |
| General | |
| Model Name | GS2200 |
| Product Type | Managed Switch |
| Model Name | GS2200 |
| Product Type | Network Switch |
| Barcode | 4718937565306 |
| Barcode | 4718937565306 |
| Performance | |
| MAC Addresses | 16,000 |
| MAC Addresses | 16,000 |
| Physical | |
| Case Colour | Black |
| Case Colour | Black |
| Dimensions | 26.2cm (W) x 18.4cm (D) x 4.1cm (H) - Weight 1.4kg |
| Dimensions | 26.2cm (W) x 18.4cm (D) x 4.1cm (H) - Weight 1.4kg |
Customer Reviews
There are currently no reviews against this product. Be the first to write a review!
Write a Review
Sorry there are no compatible products listed. Please contact us to discuss options available for this product.
Product downloads
Please see below our available downloads for this product. If there is a download that isn't listed please contact us. Please also have a look at our Installation/Setup Instructions page.
