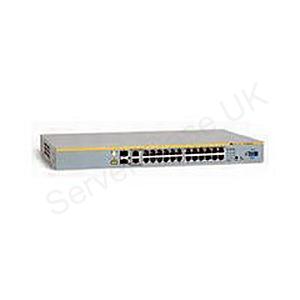

Allied Telesis 8000S/24-30 24-Port Stackable 10/100TX L2 Switch with 2 Active SFP Bays (unpopulated) and 2 Standby 10/100/1000T Ports (RJ-45) UK

One of a series of stackable switches from Allied Telesis, the AT-8000S/24 provides high performance Layer 2 switching in an affordable fixed configuration platform.This switch offers 24 10/100 ports, two fixed 1Gbps SFP slots plus two integrated stacking connectors that deliver a total of 4Gbps stacking bandwidth. The stacking capability integrated into this platform is configured as a resilient ring topology designed to provide high reliability and simplified management for higher port density applications.Featuring an industry standard CLI and Allied Telesis� intuitive yet fully featured WEB interface the advanced features of the AT-8000S/24 are accessible to a wide range of system administrators. The well known CLI and WEB interfaces significantly reduce learning time and minimize the cost of deployment.Only authorized administrators can access the management interface of the AT-8000S series. Protocols such as SSL, SSH and SNMP v3 facilitate this protection of your network with local or remote connections.



The 8000S/24 is a low-cost managed stackable Fast Ethernet switch ideal for extending the port count at the edge of the network with stacking. This cost-effective switch has an 1RU form factor, two Gigabit Ethernet SFP combo bays and dedicated stacking interfaces. An extensive set of features such as link aggregation, VLANs and port mirroring can be performed across the stack.Features

• Port Mirroring (cross stack)
• 1RU form factor
• Port Security
• Web-based management and SNMP
• IEE802.1 p class of service
• Stackable up to six devices
• Across stack link aggregation
• VLAN support
• Non-blocking wire speed forwarding
• IGMP snooping
• IEEE 802.1 Q VLAN tagging
• RADIUS support
• 4G resilient ring stacking architecture
• Across stack port mirroring

Specifications

Compliance
Standards Compliance	802.1d Bridging � 802.3x BackPressure/ Flow Control
CPU
Processor	400MHz
Electrical
Voltage/Power/Frequency	100 to 240VAC / 54W
Power Cord	UK Country Specific
Environmental
Heat Dissipation	184.41BTUs per Hour
Environmental	Operating Temperature 0 to 45�C - Humidity 10 to 90%
General
Barcode	767035181691
Interfaces/Ports
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) Standards	IEEE 802.3af
Fixed Ports	24 port(s) x 10/100Mbps ,
Network Slots	(2 Combo Ports (SFP/RJ45))
Console Ports	1 x DB-9, RS-232
Memory
Flash Memory	16MB
Memory (Maximum)	64MB RAM
Performance
MAC Addresses	8,000
Mean Time Between Failure (MTBF)	413,554 Hours
Packet Forwarding Rate	10 Mbps: 14,880 pps � 100 Mbps: 148,800 pps � 1000 Mbps: 1,488,000pps
Port Bandwidth	10/100/1000Mbps
Stacking Capabilities	Up to 6 units
Physical
In The Box	One AT-8000S/24 switch, Power cord AC, Rack-mount kit, Rubber feet for desktop installation, RS232 management cable, Stacking cable, Install guide and user guide in CD
Mounting Type	19 inch rack-mountable
Dimensions	44.0cm (W) x 25.7cm (D) x 4.4cm (H) - Weight 3.7kg
System
Management Capabilities	WEB, CLI, Serial � RFC 1157 SNMPv1/v2c � RFC 2570 SNMPv3 � RFC1213 MIB-II � RFC 1215 TRAP MIB � RFC1493 Bridge MIB � RFC 2863 Interfaces group MIB � RFC 1643 Ethernet like MIB � RFC 1757 RMON 4 groups: � Stats, History, Alarms, Events � RFC 2674 802.1Q MIB � RFC 1866 HTML � RFC 2068 HTTP � RFC 854 Telnet � RFC 783 TFTP
Certifications	Safety UL 1950 (UL/cUL), EN60950 (TUV) � EMI FCC Class A, EN55022 Class A,VCCI Class A, C-Tick, EN61000-3-2, EN61000-3-3 � Immunity EN55024 � RoHS compliant
Resiliency/Redundancy	802.1D Spanning Tree Protocol � 802.1W Rapid Spanning Tree � 802.1s Multiple Spanning Tree � 802.3ad LACP Link Aggregation (with up to 8 members per group and up to 8 groups per device)
Security	Management Security: user name and password protection � SSHv2 for Telnet management � SSLv3 for WEB management � RFC 1492 TACACS+ � RFC 2138 RADIUS Authentication � IEEE 802.1x Port-based network access control � Guest VLANs
