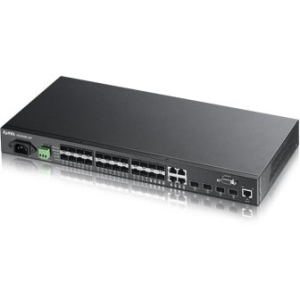

Zyxel XGS3600-28F 4 Ports Manageable Ethernet Switch

Telco-class Layer 2 Gigabit Carrier Ethernet Switch

The ZyXEL XGS3600/MGS3600 Series are Telco-class Layer 2 Carrier Ethernet switches ideal for Ethernet service aggregation and extension. The Series meet all IEEE 802.3/u/x/z/ab/ae standards and are an excellent solution that provides an ideal combination of affordability with capabilities for Carrier Access networking which include: IEEE 802.3ah MAC Layer OAM; IEEE 802.1ag Ethernet CFM, ITU-T Y.1731 Ethernet OAM Performance Monitoring; ITU-T G.8031 Ethernet Linear Protection and ITU-T G.8032 Ethernet Ring Protection Switching.

Specifications

General Information
Manufacturer	Zyxel Communications Corp.
Manufacturer Part Number	XGS3600-28-EU01V2F
Manufacturer Website Address	http://www.zyxel.co.uk
Brand Name	Zyxel
Product Series	XGS3600
Product Model	XGS3600-28F
Product Name	20-Port GbE Fiber L2 Switch With Four GbE Combo Ports And Four 10G Fiber Ports
Marketing Information	Telco-class Layer 2 Gigabit Carrier Ethernet Switch The ZyXEL XGS3600/MGS3600 Series are Telco-class Layer 2 Carrier Ethernet switches ideal for Ethernet service aggregation and extension. The Series meet all IEEE 802.3/u/x/z/ab/ae standards and are an excellent solution that provides an ideal combination of affordability with capabilities for Carrier Access networking which include: IEEE 802.3ah MAC Layer OAM; IEEE 802.1ag Ethernet CFM, ITU-T Y.1731 Ethernet OAM Performance Monitoring; ITU-T G.8031 Ethernet Linear Protection and ITU-T G.8032 Ethernet Ring Protection Switching.
Product Type	Ethernet Switch
Interfaces/Ports
Stack Port	No
Total Number of Network Ports	4
Number of Network (RJ-45) Ports	4
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	20 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	4 x Gigabit Ethernet Network
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Ethernet Technology	10 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network Technology	10GBase-X
I/O Expansions
Number of Total Expansion Slots	24
Expansion Slot Type	SFP+
Expansion Slot Type	SFP
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	Yes
Power Description
Input Voltage	110 V AC
Input Voltage	220 V AC
Physical Characteristics
Form Factor	Desktop
Height	43.9 mm
Width	442 mm
Depth	211.3 mm
Weight (Approximate)	3.10 kg
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
