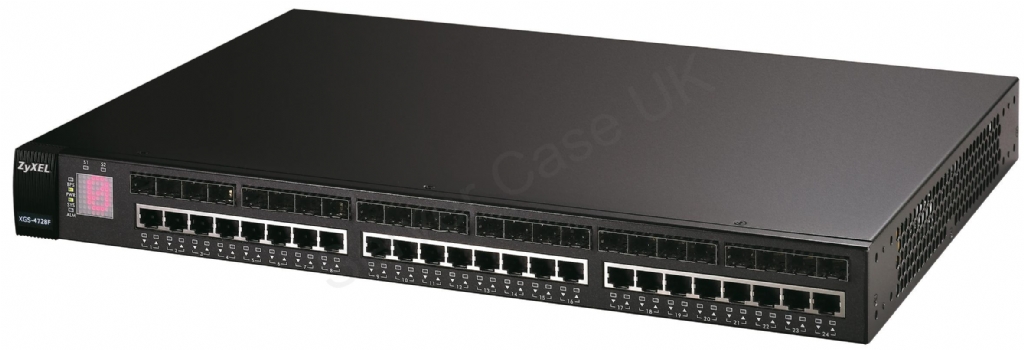

ZyXEL XGS4728F Layer 3 Managed 10G Stackable Metro Switch with 24xDual-personality Gigabit Interfaces (24x1000Base-T + 24xSFP Slots)

ZyXEL XGS-4728F Gigabit Ethernet Access Switch provides high-performance switching functionalities to triple-play services such as Internet data exchange, Web surfing, IPTV and VoIP telephony. The advantages not only fulfill customer needs but also enable service providers to generate more profit. Unlike competitors' offering of individual models for GbE copper and fiber connectivity, the leading architecture employed by the XGS-4728F delivers 24 1000Base-T copper interfaces along with standard RJ-45 connectors and 24 SFP slots in a 19 1U enclosure. This unique benefit gives network designers the highest flexibility and cost saving in terms of equipment investment, network administration and system maintenance. With two high-performance 12G stacking ports on the back panel, over 10 units of the XGS-4728F can be easily hard-stacked in a ring architecture; this feature makes the XGS-4728F highly scalable and eases the network expansion and administration. Moreover, as the stacking ports come with every XGS-4728F unit, customers have no need to spend extra for stacking modules and stacking cables.

Each XGS-4728F provides 144Gbps switching capacity for wire-speed performance delivered on all GbE copper/fiber ports within the stack, as well as stacking ports and optional 10G uplinks. In addition, advanced L3 switching, multicasting, resiliency including OSPF, DVMRP, VRRP also help delivering optimal performance to the entire network. The XGS-4728F designed for large Internet Services Provider and Telco market, increasing network capability scare and provide fast efficient solution for customer. 16K MAC Entries/12K L3 Route is an idea for large Internet services.

Features

• 24 Dual-personality Gigabit Ports
• 24 Dual-personality Gigabit Ports
• Two Built-in 12G Stacking Interfaces
• Two Built-in 12G Stacking Interfaces
• 1 Open Slot for Optional 2 10-Gigabit Uplink Module
• 1 Open Slot for Optional 2 10-Gigabit Uplink Module
• L3 Advanced Routing Protocols, OSPF, VRRP and DVMRP
• L3 Advanced Routing Protocols, OSPF, VRRP and DVMRP
• 16K MAC Entries,8K L3 Host and 12K L3 Route
• 16K MAC Entries,8K L3 Host and 12K L3 Route
• Multilayer-aware (L2/L3/L4) ACL for Security Protection and Traffic Optimization
• Multilayer-aware (L2/L3/L4) ACL for Security Protection and Traffic Optimization
• Port Security and enhanced 802.1x Port Authentication
• Port Security and enhanced 802.1x Port Authentication
• Backup Power System Support
• Backup Power System Support

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T Ethernet � IEEE 802.3u 100 Base-Tx Ethernet � IEEE 802.ab 1000 Base-T Ethernet � IEEE 802.3x Flow control � IEEE 802.1D Spanning tree protocol � IEEE 802.1w Rapid Spanning tree protocol � IEEE 802.1s Multiple Spanning tree protocol � IEEE 802.1p Class of service, priority protocols � IEEE 802.1Q VLAN tagging � IEEE 802.1x Port Authentication � IEEE 802.3ad LACP aggregation
Standards Compliance	IEEE 802.3 10Base-T Ethernet � IEEE 802.3u 100 Base-Tx Ethernet � IEEE 802.ab 1000 Base-T Ethernet � IEEE 802.3x Flow control � IEEE 802.1D Spanning tree protocol � IEEE 802.1w Rapid Spanning tree protocol � IEEE 802.1s Multiple Spanning tree protocol � IEEE 802.1p Class of service, priority protocols � IEEE 802.1Q VLAN tagging � IEEE 802.1x Port Authentication � IEEE 802.3ad LACP aggregation
Electrical
Voltage/Power/Frequency	100 to 240VAC / 100W / 50 to 60Hz
Voltage/Power/Frequency	100 to 240VAC / 100W / 50 to 60Hz
General
Model Name	XGS4728F
Product Type	Managed Switch
Model Name	XGS4728F
Product Type	Network Switch
Barcode	4718937507900
Barcode	4718937507900
Interfaces/Ports
Fixed Ports	24 port(s) x RJ-45 , 10/100/1000Mbps , (24 x SFP + 2 x 12Gb Stacking Ports)
Fixed Ports	24 port(s) x RJ-45 , 10/100/1000Mbps , (24 x SFP + 2 x 12Gb Stacking Ports)
Uplink Ports	1 port(s) x (1 Uplink Slot for 2 10G)
Uplink Ports	1 port(s) x (1 Uplink Slot for 2 10G)
Console Ports	1 x DB-9, RS-232
Console Ports	1 x DB-9, RS-232
Management Port	1 x RJ-45
Management Port	1 x RJ-45
Memory
Buffer Memory	0.75MB
Buffer Memory	0.75MB
Performance
MAC Addresses	16,000
MAC Addresses	16,000
Packet Forwarding Rate	100 Mbps: 148,800 pps � 1000 Mbps: 1,488,000pps
Packet Forwarding Rate	100 Mbps: 148,800 pps � 1000 Mbps: 1,488,000pps
Physical
Dimensions	43.8cm (W) x 31.0cm (D) x 4.4cm (H) - Weight 7kg
Dimensions	43.8cm (W) x 31.0cm (D) x 4.4cm (H) - Weight 7kg
Routing
Layer 3 Services	Intelligent ACL (L2/L3/L4 Access List Control: Based on MAC address � Based on VLAN � Based on IP address � Based on Protocol type � Based on TCP/UDP type � Based on DSCP
Layer 3 Services	Intelligent ACL (L2/L3/L4 Access List Control: Based on MAC address � Based on VLAN � Based on IP address � Based on Protocol type � Based on TCP/UDP type � Based on DSCP
System
Management Capabilities	ZyXEL iStacking, up to 24 switches managed by single IP address � Web-based management � Telnet CLI � SNMP v1, v2c, v3 � RS-232c Local console � IP management: static IP or DHCP Sever/Relay � RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) � Port mirroring: Source/Destination/Both port mirroring
Management Capabilities	ZyXEL iStacking, up to 24 switches managed by single IP address � Web-based management � Telnet CLI � SNMP v1, v2c, v3 � RS-232c Local console � IP management: static IP or DHCP Sever/Relay � RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) � Port mirroring: Source/Destination/Both port mirroring
Convergence/Prioritising	Rate Limiting: Rule-based/Port-based bandwidth control, 64kbps granularity � Dual-Rate-Three-Color � CIR/PIR for bandwidth control � Port-based egress traffic shaping � Broadcast Storm Control � IEEE 802.1p with 8 priority queues per port for different traffic types � WFR (Weighted Fair Queue)/WRR (Weighted Round Robin)/SPQ scheduling algorithm � DSCP/DSCP to 802.1p priority mapping � IGMP/IGMP snooping v1 v2 v3 � MVR � Congestion control on all ports
Convergence/Prioritising	Rate Limiting: Rule-based/Port-based bandwidth control, 64kbps granularity � Dual-Rate-Three-Color � CIR/PIR for bandwidth control � Port-based egress traffic shaping � Broadcast Storm Control � IEEE 802.1p with 8 priority queues per port for different traffic types � WFR (Weighted Fair Queue)/WRR (Weighted Round Robin)/SPQ scheduling algorithm � DSCP/DSCP to 802.1p priority mapping � IGMP/IGMP snooping v1 v2 v3 � MVR � Congestion control on all ports
Certifications	UL 60950-1 � CSA 60950-1 � EN 60950-1 � IEC 60950-1
Certifications	UL 60950-1 � CSA 60950-1 � EN 60950-1 � IEC 60950-1
Ethernet Switching Features	64 IP routing domains � 8K IP address table � Wire-speed IP forwarding � RIP v1, v2 � 12K Routing Entries � IGMP v1, v2, v3 � DHCP Server/Relay
Ethernet Switching Features	64 IP routing domains � 8K IP address table � Wire-speed IP forwarding � RIP v1, v2 � 12K Routing Entries � IGMP v1, v2, v3 � DHCP Server/Relay
Resiliency/Redundancy	IEEE802.1w Rapid Spanning Tree Protocol (RSTP) � IEEE802.1s Multiple Spanning Tree Protocol (MSTP) � BPS (Backup Power System)
Resiliency/Redundancy	IEEE802.1w Rapid Spanning Tree Protocol (RSTP) � IEEE802.1s Multiple Spanning Tree Protocol (MSTP) � BPS (Backup Power System)
Security	IEEE 802.1Q tag-based and port-based VLAN � Support GVRP, automatic VLAN member registration � 1K static VLANs, up to 4K dynamic VLAN � Full range 4K PVID support � Port-base VLAN and VLAN isolation � IP Classification VLAN � Intrusion Lock � MAC Freeze � MAC filtering per port secures access to each port � Port security � Limited MAC number per port � IP Source Guard � Loop Guard � RADIUS MAC login � IP Filtering � TCP/UDP Socket Filtering � BPDU transparency � 802.1x port-based authentication � Accounting by TACACS+ and RADIUS � Network Administration Security: User name/password required for Web/Telnet/local console administrators � Two-level security by specific SNMP read/write community � Multiple login session � Multiple access permission management � SSH v1/v2 � SSL/TLS
Security	IEEE 802.1Q tag-based and port-based VLAN � Support GVRP, automatic VLAN member registration � 1K static VLANs, up to 4K dynamic VLAN � Full range 4K PVID support � Port-base VLAN and VLAN isolation � IP Classification VLAN � Intrusion Lock � MAC Freeze � MAC filtering per port secures access to each port � Port security � Limited MAC number per port � IP Source Guard � Loop Guard � RADIUS MAC login � IP Filtering � TCP/UDP Socket Filtering � BPDU transparency � 802.1x port-based authentication � Accounting by TACACS+ and RADIUS � Network Administration Security: User name/password required for Web/Telnet/local console administrators � Two-level security by specific SNMP read/write community � Multiple login session � Multiple access permission management � SSH v1/v2 � SSL/TLS
