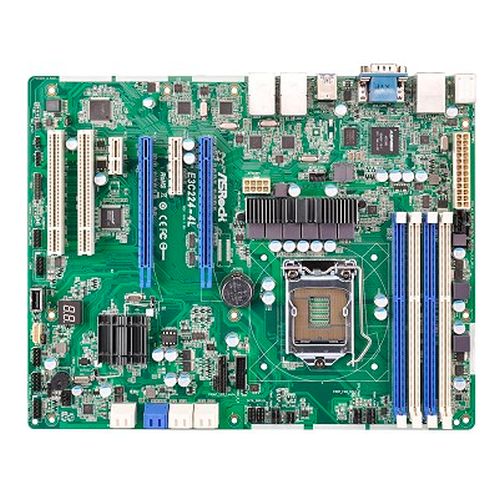

Asrock Rack E3C224-4L Server Board, Intel C224, 1150, ATX, Quad GB LAN, IPMI LAN, Serial Port

• ATX 12" x 9.6"
• Single socket H3 (LGA 1150)
• Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
• 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
• 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1, 2 x PCI
• 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
• 2 x SATA3 by Marvell 9172 support RAID 0,1
• 4 x Intel i210, support Quad GLAN
• ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
• 4 x USB 3.0 ports (2 rear + 2 via header )
• 7 x USB 2.0 ports (2 rear + 4 via header +1 Type A)

Specification

• Form Factor: ATX
• Socket: 1150
• Chipset: Intel C224
• RAM Technology: DDR3 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 1600/1333 MHz
• Maximum Memory: 32GB
• Graphics: ASPEED AST2300
• Graphics Ports: 1 x VGA
• PCI Express: 2 x PCIe 3.0 x 16
  1 x PCIe 3.0 x 4
  1 x PCIe 2.0 x 1
• PCI: 2 x PCI
• Storage: 4 x SATA III
  2 x SATA II
• RAID: RAID 0 1 5 10 and Intel Rapid Storage
• eSATA:
• Wireless: -
• LAN: Quad GB LAN
• Audio: -
• IDE:
• USB Ports: 4 x USB 3.0 ports (2 at back 2 at mid-board)
  5 x USB 2.0 ports (2 at back 2 at mid-board + 1 Type A)
• Multi-GPU Support: -
• Back Panel I/O Ports: 2 x PS/2 KB/Mouse
  1 x VGA
  2 x USB 2.0 Port
  2 x USB 3.0 Port
  4 x GB Lan Port
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
• Internal I/O Connectors: 1 x COM Port
  1 x Front Lan LED
  1 x Auxiliary Panel
  1 x TPM
  1 x Thermal Sensor
  1 x IPMB
  1 x Buzzer
  7 x Fan
  1 x ATX Power
  1 x USB 3.0 Connector
  2 x USB 2.0 Connector
  1 x Type A USB 2.0 Port
• .:
• CPU Support: See manufacturers link (next to product images)
• Accessories:
• Package Type: Retail
• Package Weight: 0.6650 kg
• Refurbished:
• Additional Features: See Overview
• Warranty: 3 Years
