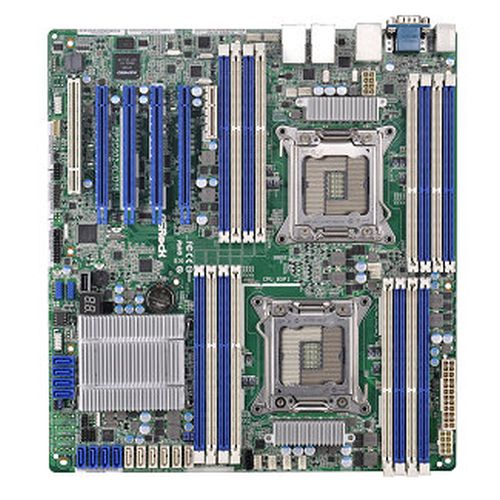

Asrock Rack EP2C602-4L/D16 Server Board, Intel C602, 2011, SSI EEB, Quad GB LAN, IPMI LAN, Serial Port

• Dual Socket R (LGA2011), supports Intel Xeon 5-1600/2600/4600 & v2 series
• Supports Quad Channel DDR3 1866 memory, 16 DIMM slots, Max. 512GB
• 4 PCIe 3.0 x16, 1 PCIe 3.0 x4, 1 PCI
• ASPEED AST2300 graphics, 1 VGA : D-Sub
• 8 SATA2 (3.0 Gb/s) by Intel C602, Supports RAID 0, 1, 5, 10
• 2 SATA3 (6.0 Gb/s) by Intel C602, Supports RAID 0, 1
• 7 USB 2.0 (2 from rear I/O, 4 from onboard headers, 1 Type A port)
• Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
• 4 Intel 82574L LAN, Support PCIE Quad Gigabit LAN

Specification

• Form Factor: SSI EEB
• Socket: 2011
• Chipset: Intel C602
• RAM Technology: DDR3 (Quad Channel)
• RAM Slots: 16 x DIMM
• RAM Speeds: 1866/1600/1333/1066 MHz
• Maximum Memory: 512GB
• Graphics: ASPEED AST2300
• Graphics Ports: 1 x VGA
• PCI Express: 2 x PCIe2/PCIe5 x16 mode
  1 x PCIe3 x0/x8 mode
  1 x PCIe4 x16/x8 mode
• PCI: -
• Storage: 6 x SATA III
• RAID: Marvell SE9230: RAID 0 1 10 NCQ AHCI and Hot Plug
  Intel C602: RAID 0 1 5 10 and Intel Rapid Storage 3.0
• eSATA:
• Wireless: -
• LAN: Quad GB LAN
• Audio: -
• IDE:
• USB Ports: 6 x USB 2.0 ports (2 at back 4 at mid-board)
  1 x Type A USB 2.0 Port
• Multi-GPU Support: -
• Back Panel I/O Ports: 2 x PS/2 KB/Mouse
  1 x D-Sub
  2 x USB 2.0 Port
  4 x Lan Port
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
• Internal I/O Connectors: 1 x COM Port Header
  1 x Auxiliary Panel
  1 x TPM
  1 x Thermal Sensor
  1 x IPMB
  1 x Buzzer
  8 x Fan
  1 x ATX Power
  2 x USB 2.0 Header
  1 x Type A USB 2.0 Port
  1 x Front Panel
  1 x Speaker
• .: 1 x Dr. Debug with LED
• CPU Support: See manufacturers link (next to product images)
• Accessories:
• Package Type: Retail
• Package Weight: 0.6650 kg
• Refurbished:
• Additional Features: See manufacturers link (next to product images)
• Warranty: 3 Years
