System | |
Form Factor | 1U |
Dimensions | 250 x 430 x 43.5mm (9.8'' x 16.9'' x 1.7'') |
Support MB | X570D4I-2T |
Front Panel | |
Buttons | Power switch, System reset |
LEDs | Power status, HDD, LAN activity LEDs |
I/O Ports | 1 DB15 (VGA) 2 Type-A (USB3.2 Gen1) 2 Type-A (USB3.2 Gen2) 2 RJ45 (10GbE) by Intel® X550-AT2 1 UID w/ LED |
IPMI LAN | 1 dedicated IPMI |
External Drive Bay / Storage | |

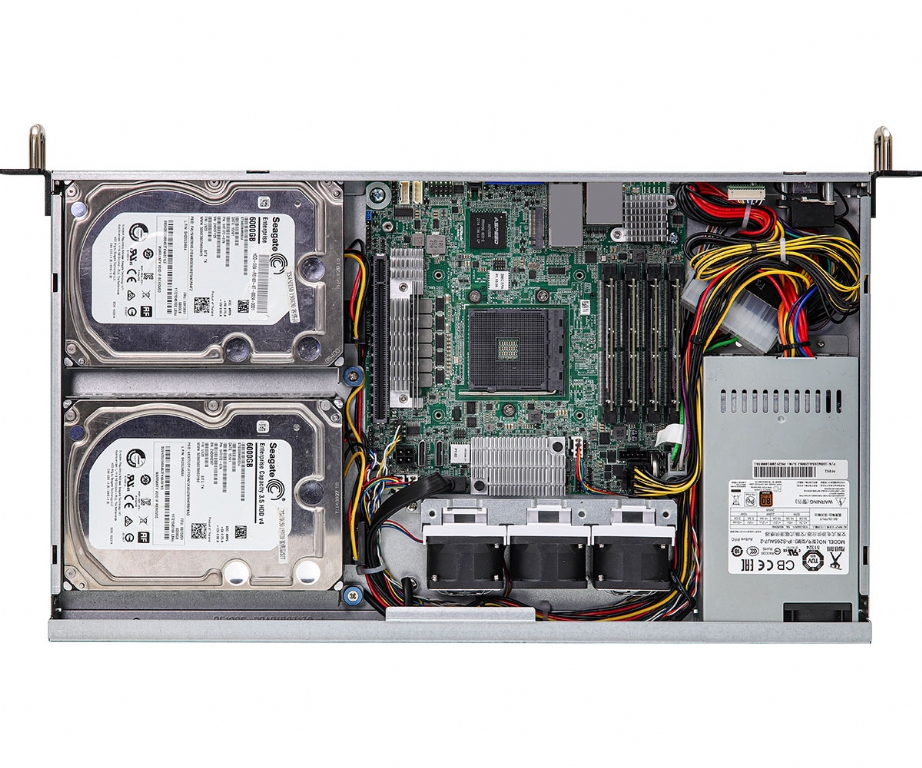

Internal Side | Supports 2 fixed 3.5” drives and 2 fixed 2.5'' 7mm drives 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280 *Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics |
Power Supply | |
Type | Single PSU |
Output Watts | 265W |
Efficiency | 80-Plus Bronze |
AC Input | 100-240V, 50-60Hz |
System Fan | |
Fan | 3 Easy-swap 40x28 mm fans |
Processor System | |
CPU | Supports: AMD Ryzen™ 5000 and 3000 Series Desktop Processors AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors |
Socket | AM4 PGA 1331 |
Thermal Design Power | 105W |
Chipset | AMD X570 |
System Memory | |
Supported DIMM Quantity | 4 DDR4 SO-DIMM slots (2DPC) |
Supported Type | Supports DDR4 260-pin ECC*/non-ECC SO-DIMM *For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. |
Max. Capacity per DIMM | up to 32GB |
Max. DIMM Frequency | One DIMM: 1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s Two DIMMs: 2400MT/s |
Voltage | 1.2V |
Server Management | |
BMC Controller | ASPEED AST2500 |
IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
Graphics | |
Controller | ASPEED AST2500 |
VRAM | DDR4 16MB |
System BIOS | |
BIOS Type | 32MB AMI UEFI Legal BIOS |
BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
