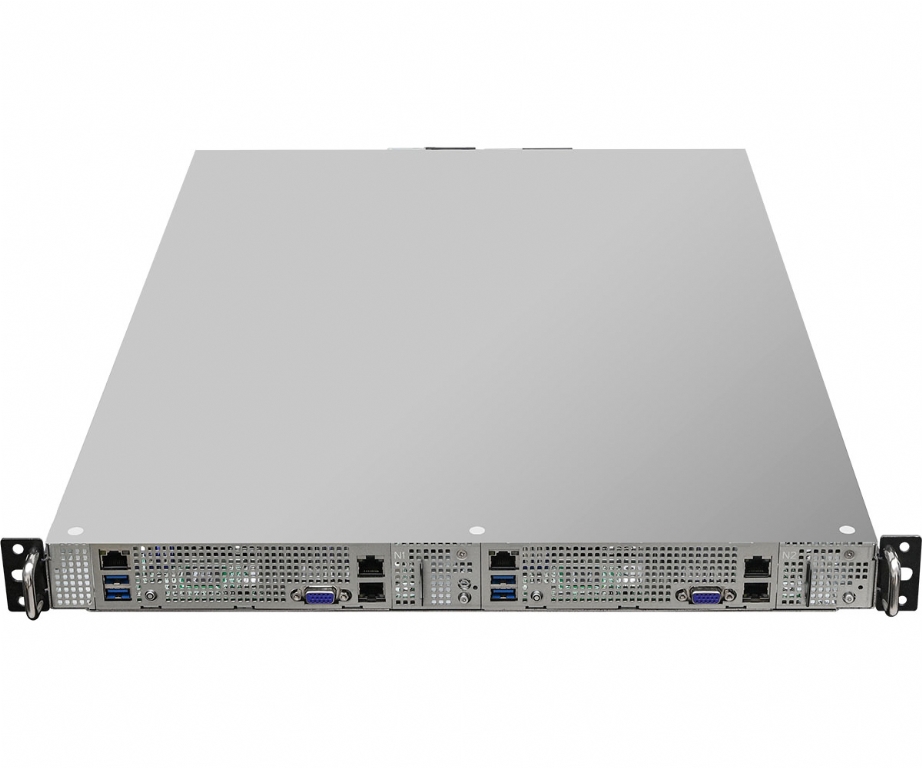

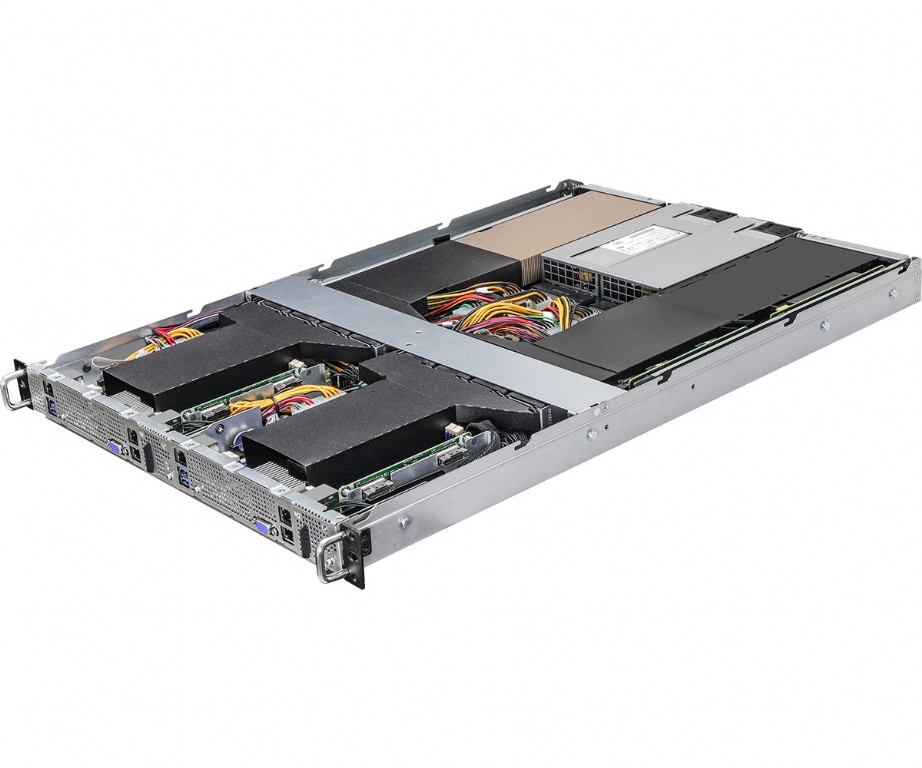

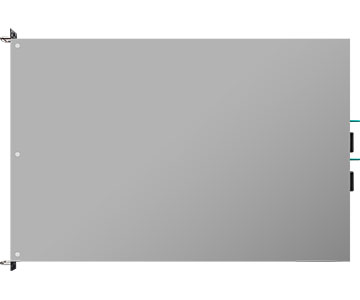

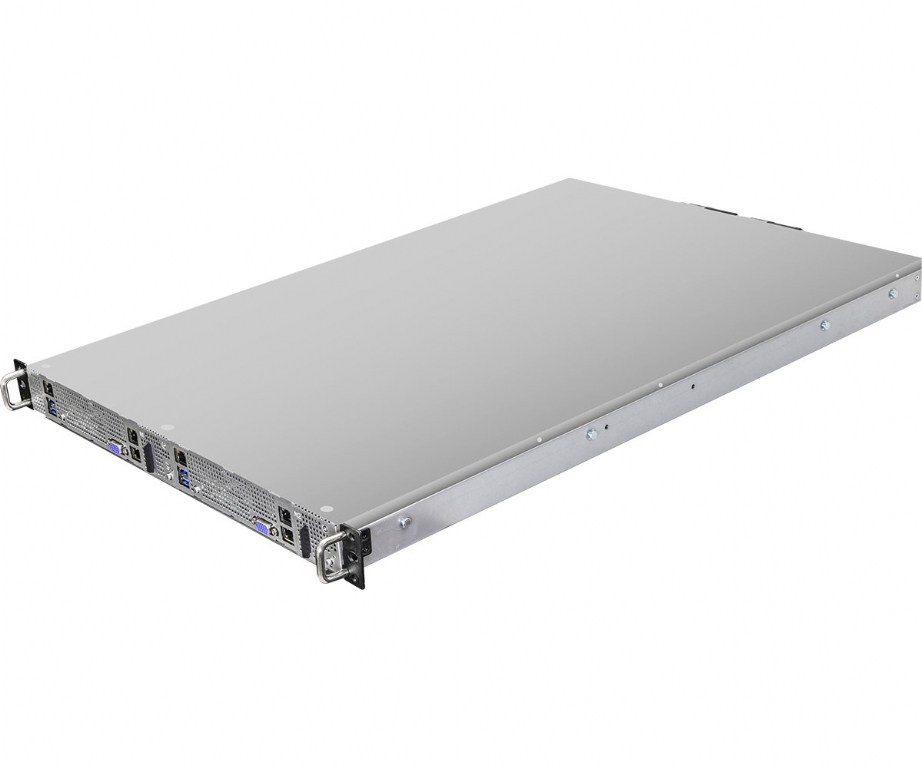

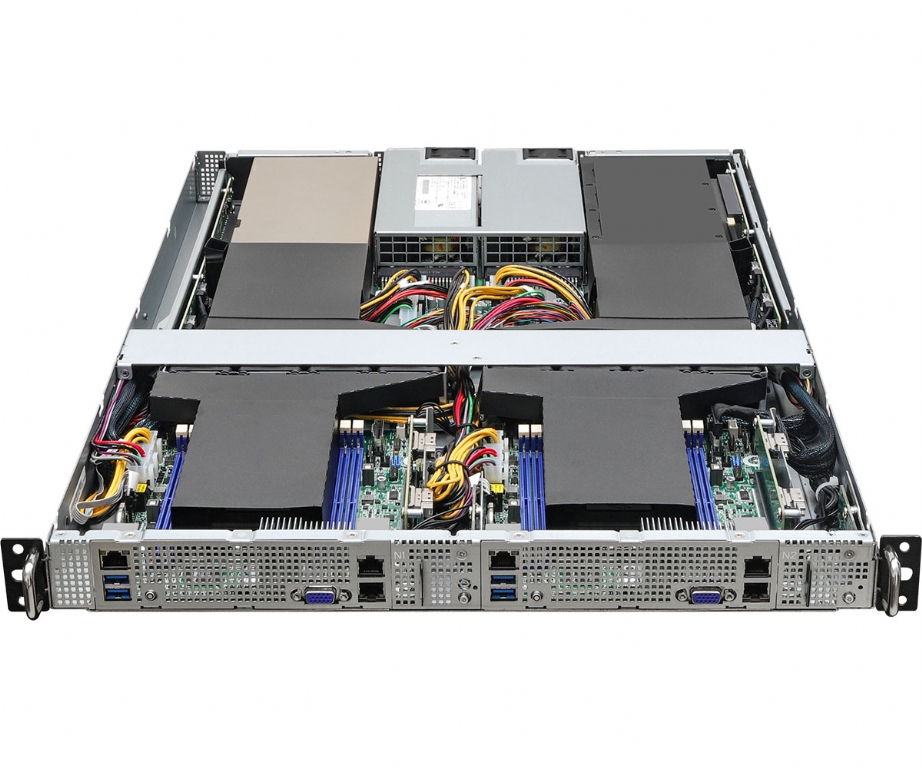

ASRock Rack 1U2N2G-ROME/2T Rackmount Server Barebone - Dual Node Each Supporting Single AMD ROME 3rd Gen CPU - Dual PSU

1U2N2G-ROME/2T

Call our Solutions Specialists - 01283 576162

Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

System
Form Factor	1U Rackmount
Dimensions	650 x 438 x 43.5 mm (25.6'' x 17.2'' x 1.7'')
Support MB	ROMED4ID-2T
Front Panel
Buttons	UID w/ LED, Power w/ LED
LEDs	System Fail
I/O Ports	2 RJ45 (10GbE) by Intel^® X550-AT2 2 Type-A (USB3.2 Gen1) 1 DB15
IPMI LAN	1 dedicated IPMI
External Drive Bay / Storage
Internal Side	1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 2280 form factor
Power Supply
Type	1+1 CRPS
Output Watts	1600W
AC Input	100-240V, 47/63Hz
System Fan
Fan	8 dual-rotor 40x56 mm fans
Processor System
CPU	Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 Series Processors
Socket	Single Socket SP3 (LGA4094)
Chipset	System on Chip
System Memory
Supported DIMM Quantity	4 DIMM slots (1DPC)
Supported Type	Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
Max. Capacity per DIMM	RDIMM: up to 64GB LRDIMM: up to 128GB RDIMM/LRDIMM-3DS: up to 256GB
Max. DIMM Frequency	RDIMM/ LRDIMM: max. 3200MHz
Voltage	1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16	1 FH dual-slot PCIe4.0 x16
Server Management
BMC Controller	ASPEED AST2500
IPMI Dedicated GLAN	1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller	ASPEED AST2500
System BIOS
BIOS Type	256Mb SPI Flash ROM
BIOS Features	Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU, TRMB_IN, TRMB_OUT1 temperature sensing
Fan	Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control
Voltage	1.8VSB,3VSB,5VSB,1.8V,3V,5V,12V,BAT,VCPU,VSOC,VCCM ABCD,VCCM EFGH
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)
