System | |
Form Factor | 1U |
Dimensions | 880 x 438 x 43.5 mm (34.6" x 17.2" x 1.7") |
Support MB | The motherboard not sold separately |

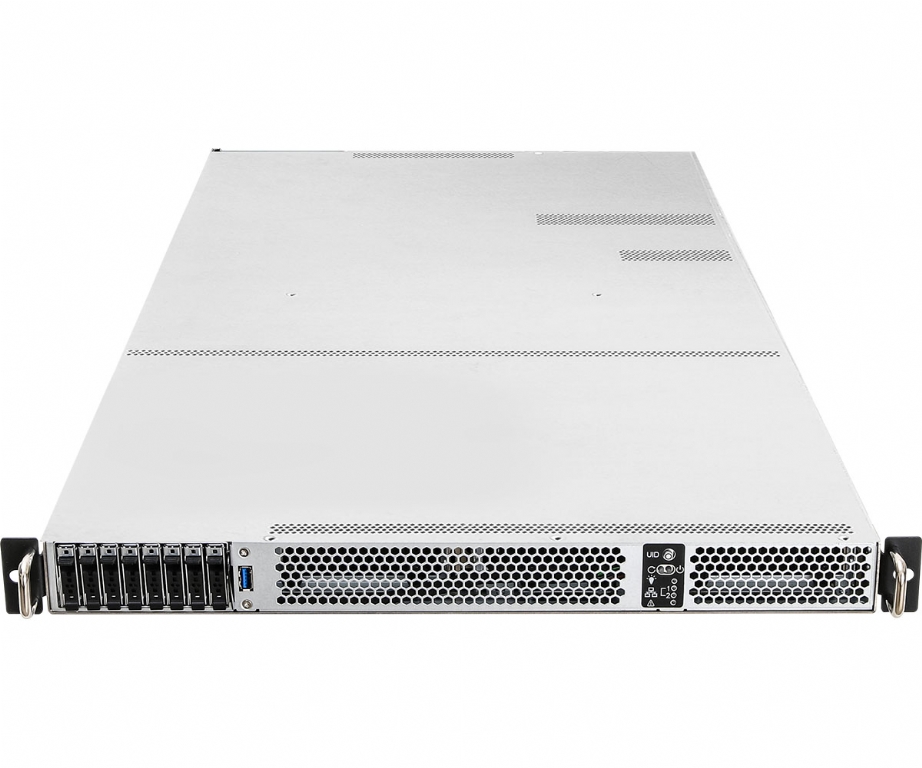

Front Panel | |
Buttons | UID, Power, Reset |
LEDs | System Fail, Power, LAN1, LAN2 |
I/O Ports | 1 Type-A (USB3.2 Gen1) |
External Drive Bay / Storage | |
Front Side Drive Bay | 8 E1.S (PCIe x4) trays support up to 8.01mm thickness E1.S or 22110/2280 M.2 (PCIe x4) by optional ED_M2W_G4 adapter card |
Internal Side | 2 header (9-pin, USB2.0) support USB DOM |
Power Supply | |
Type | 1+1 CRPS |
Output Watts | 2000W |
Efficiency | 80-PLUS Platinum |
AC Input | 200-240V, 50/60Hz |
System Fan | |
Fan | 8 dual-rotor hot-swap 40x56 mm fans |
Processor System | |
CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
Socket | SP3 |
Chipset | System on chip |
System Memory | |
Supported DIMM Quantity | 8 DDR4 288-pin DIMM slots (1DPC) |
Supported Type | DDR4 R DIMM/ LR DIMM |
Max. Capacity per DIMM | RDIMM: 64GB, 32GB, 16GB, 8GB LRDIMM: 256GB*, 128GB, 64GB * 256GB is to be validated |
Max. DIMM Frequency | RDIMM: 3200/2933/2666/2400MHz LRDIMM: 3200/2933/2666/2400MHz |
Voltage | 1.2V |
PCIe Expansion Slots (SLOT7 close to CPU) | |
PCIe x 16 | Front: supports 3 FH dual-slot* PCIe4.0 x16 via 1U4G_SL2P_L_RDV and 1U4G_SL2P_R_RDV Rear: supports 1 FH dual-slot* PCIe4.0 x16 via 1U4G_SL2P_L_RDV supports 2 low-profile PCIe4.0 x16 via RB1UX16_G4 * Active-cooled cards and cards with power connector on the top edge are not supported. |
TPM | |
TPM support | Onboard INFINEON SLB9670(TPM2.0), 1 header ( 17-pin, LPC) |
Ethernet | |
Additional GbE Controller | Intel® i350-AM2: 2 (1GbE) RJ45 |
Server Management | |
BMC Controller | ASPEED BMC AST2500 |
Graphics | |
Controller | ASPEED BMC AST2500: 1 DB15 (VGA) |
Rear I/O | |
VGA Port | 1 DB15 (VGA) |
USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
RJ45 | 2 RJ45 (1GbE) via i350-AM2 1 dedicated IPMI |
System BIOS | |
BIOS Type | 32MB AMI UEFI Legal BIOS |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C *Please contact ASRock Rack for the operating temperature while GPGPU deployed |
Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
