System | |
Form Factor | 1U Rackmount |
Dimensions | 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'') |
Support MB | SPC741D8UD-2T/X550 |

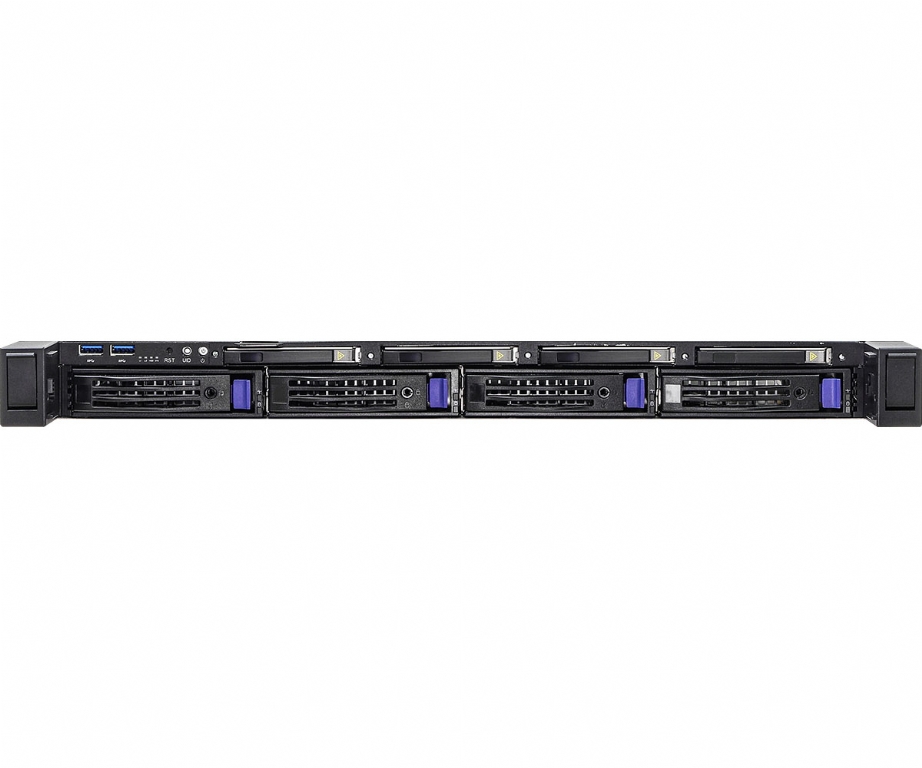

Front Panel | |
Buttons | Power w/ LED, UID w/ LED, System Reset |
LEDs | HDD Activity, LAN 1/2 Activity, System Event |
I/O Ports | 2 Type-A (USB2.0) |
External Drive Bay / Storage | |
Front Side Drive Bay | 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS* drive bays 4 Hot-swap 3.5" SATA drive bays *SAS drive is only supported with additional RAID/HBA cards |
Front Side Backplane | 4-ports NVMe/SATA/SAS* passive backplane, 4-ports SATA passive backplane |
Internal Side | 1 M-key (PCIe3.0 x4); support 2280 form factor |
Power Supply | |
Type | 1+1 Slim PSU |
Output Watts | 750W |
Efficiency | 80-PLUS Platinum |
AC Input | 100-240V, 60/50Hz |
System Fan | |
Fan | 6 PWM Hot-swap 40x56 mm fans |
Processor System | |
CPU | Supports 4th Gen Intel® Xeon® Scalable processors |
Socket | Single Socket E (LGA 4677) |
Thermal Design Power | max. up to 300W |
Chipset | Intel® C741 |
System Memory | |
Supported DIMM Quantity | 8 DIMM slots (1DPC) |
Supported Type | 288-pin DDR5 RDIMM/ RDIMM-3DS |
Max. Capacity per DIMM | RDIMM: 64GB RDIMM-3DS: 256GB |
Max. DIMM Frequency | 4800 MT/s |
Voltage | 1.1V |
PCIe Expansion Slots (SLOT7 close to CPU) | |
PCIe x 16 | 1 FHHL PCIe5.0 x16 via RB1UX16R_G5 |
Ethernet | |
Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X550-AT2 |
Server Management | |
BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
Graphics | |
Controller | ASPEED AST2600 |

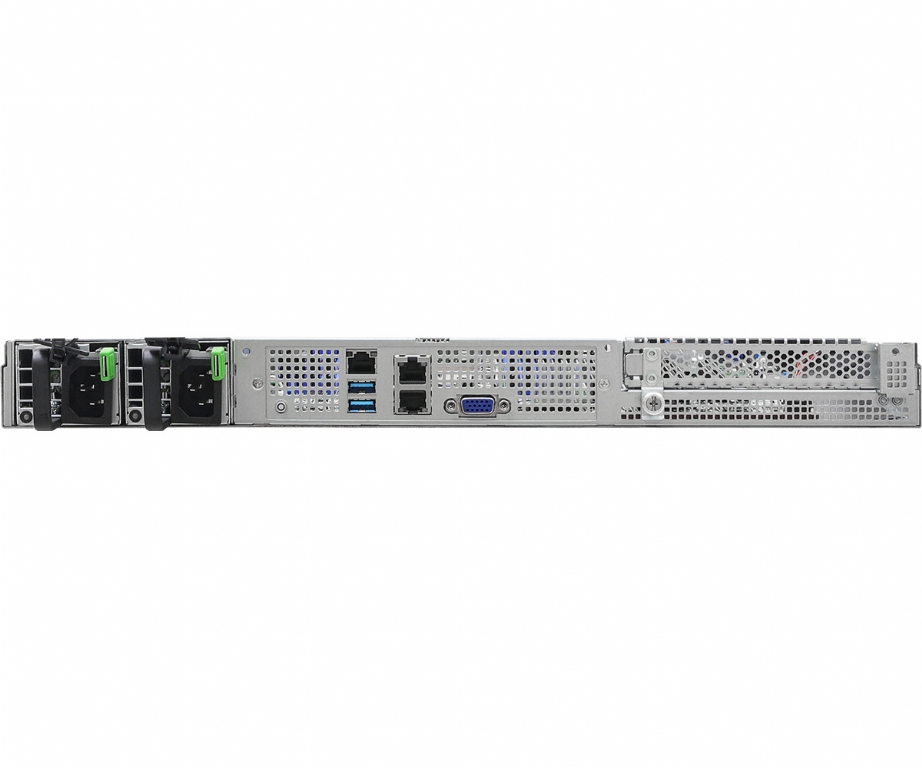

Rear I/O | |
UID Button/LED | 1 UID button w/ LED |
VGA Port | 1 DB15 (VGA) |
USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
RJ45 | 2 RJ45 (10GbE), 1 dedicated IPMI |
System BIOS | |
BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
BIOS Features | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
Hardware Monitor | |
Temperature | CPU, PCH, MB, Card side Temperature Sensing |
Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
Voltage | 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
