System | |

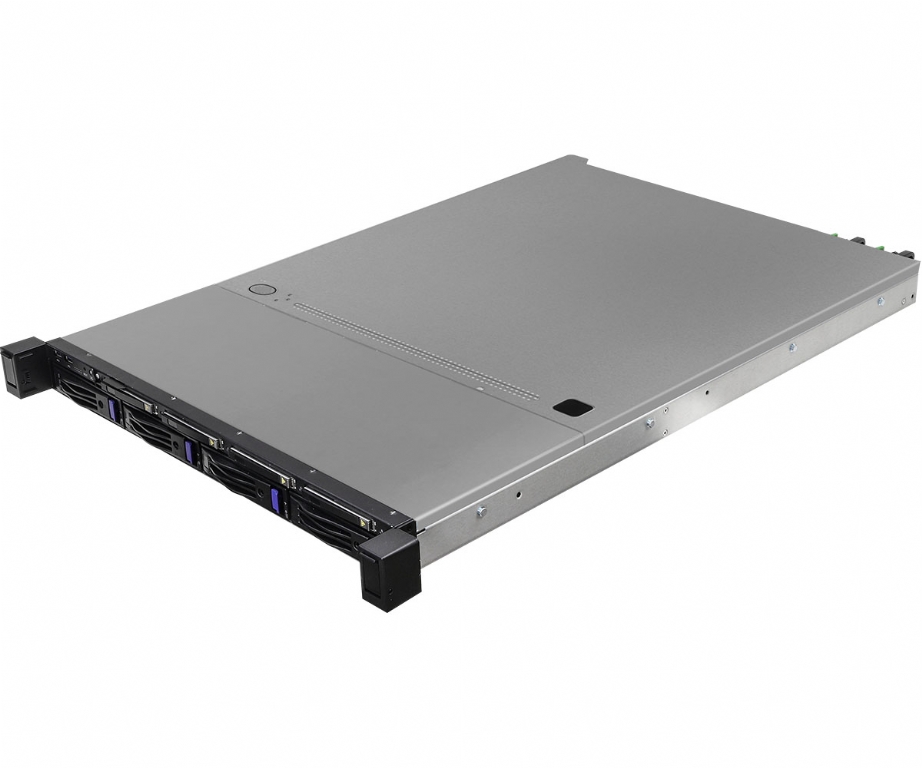

Form Factor | 1U Rackmount |
Dimensions | 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'') |
Support MB | GENOAD8UD-2T/X550 |
Front Panel | |
Buttons | Power button w/ LED, ID button w/ LED, System reset |
LEDs | HDD Activity, LAN 1/2, System Event |
I/O Ports | 2 Type-A (USB3.2 Gen1) |
External Drive Bay / Storage | |
Front Side Drive Bay | 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays 4 hot-swap 3.5" SATA drive bays |
Front Side Backplane | 4-port NVMe/SATA/SAS* passive backplane, 4-port SATA passive backplane *SAS drive is only supported with additional RAID/HBA cards |
Internal Side | 2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor |
Power Supply | |
Type | 1+1 Slim PSU |
Output Watts | 750W |
Efficiency | 80-PLUS Platinum |
System Fan | |
Fan | 6 PWM Easy-swap 40x56 mm fans |
Processor System | |
CPU | Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
Socket | Single Socket SP5 (LGA 6096) |
Thermal Design Power | Up to 300W |
Chipset | System on Chip |
System Memory | |
Supported DIMM Quantity | 8 DIMM slots (1DPC) |
Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
Max. Capacity per DIMM | RDIMM: 64GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
Max. DIMM Frequency | 4800 MHz |
PCIe Expansion Slots (SLOT7 close to CPU) | |
PCIe x 16 | Rear: 1 FHHL PCIe5.0 x16 via RB1UX16R_G5 |
Ethernet | |
Additional GbE Controller | Intel® X550-AT2: 2 RJ45 (10GbE) |
Server Management | |
BMC Controller | ASPEED AST2600 |
IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
Graphics | |
Controller | ASPEED AST2600 |
VRAM | DDR4 512MB |

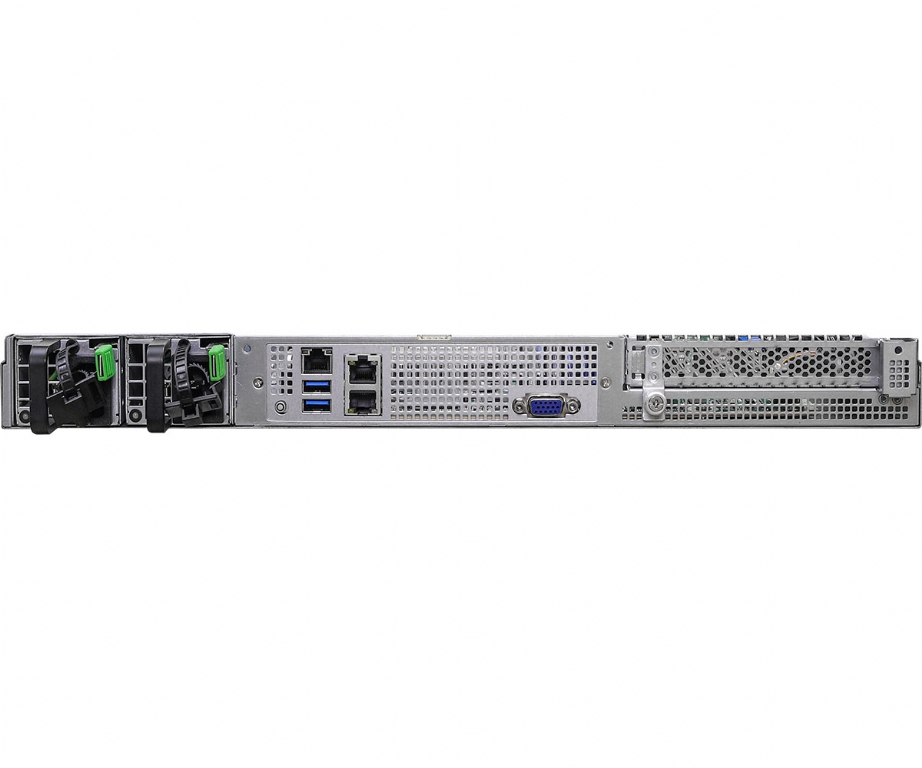

Rear I/O | |
UID Button/LED | 1 UID button w/ LED |
VGA Port | 1 DB15 (VGA) |
USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
System BIOS | |
BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
Hardware Monitor | |
Temperature | CPU, MB, TR1 Temperature sensing |
Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
Voltage | VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
