System | |
Form Factor | 1U Rackmount |
Dimensions | 533.4 x 482.6 x 44.4 mm (21" x 19" x 1.7") |
Support MB | X570D4U-2L2T |
Front Panel | |
Buttons | Power button w/ LED, UID w/LED, System reset |
LEDs | LANs, HDD activity, System health |
I/O Ports | 2 Type-A (USB 3.2 Gen1) |
External Drive Bay / Storage | |
Front Side Drive Bay | 4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays 1 Slim ODD (BTO) |
Internal Side | 3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics |
Power Supply | |
Type | Single PSU |
Output Watts | 400W |
Efficiency | 80-PLUS Gold |
AC Input | 100-240V, 50-60Hz |
System Fan | |
Fan | 5 PWM Easy-swap 40x28 mm fans |
Processor System | |
CPU | Supports: AMD Ryzen™ 5000 and 3000 Series Desktop Processors AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors |
Socket | AM4 PGA 1331 |
Chipset | AMD X570 |
System Memory | |
Supported DIMM Quantity | 4 DIMM slots (2DPC) |
Supported Type | 288-pin DDR4 ECC* and non-ECC UDIMM *For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. |
Max. Capacity per DIMM | up to 32GB |
Max. DIMM Frequency | up to 3200 MHz* * AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz |
Voltage | 1.2V |
PCIe Expansion Slots (SLOT7 close to CPU) | |
PCIe x 16 | Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics *Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics |
Server Management | |
BMC Controller | ASPEED AST2500 |
IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
Graphics | |
Controller | ASPEED AST2500: 1 DB15 (VGA) AMD Ryzen Desktop Processors with Radeon Graphics: 1 HDMI |
VRAM | DDR4 16MB |

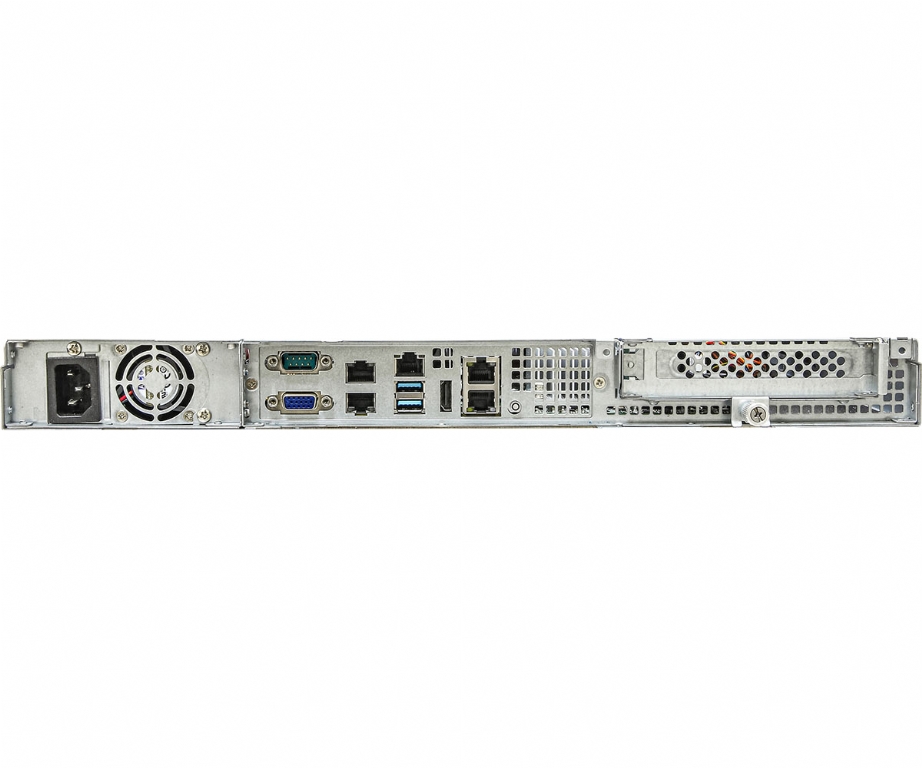

Rear I/O | |
UID Button/LED | 1 UID button w/ LED |
VGA Port | 1 DB15 (VGA) |
Serial Port | 1 DB9 (COM) |
USB 3.2 Gen2 Port | 2 Type-A (USB3.2 Gen1) |
RJ45 | 2 RJ45(10GbE) by Intel® X550-AT2 2 RJ45(1GbE) by Intel® i210 1 dedicated IPMI |
System BIOS | |
BIOS Type | 32MB AMI UEFI Legal BIOS |
BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C |
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
