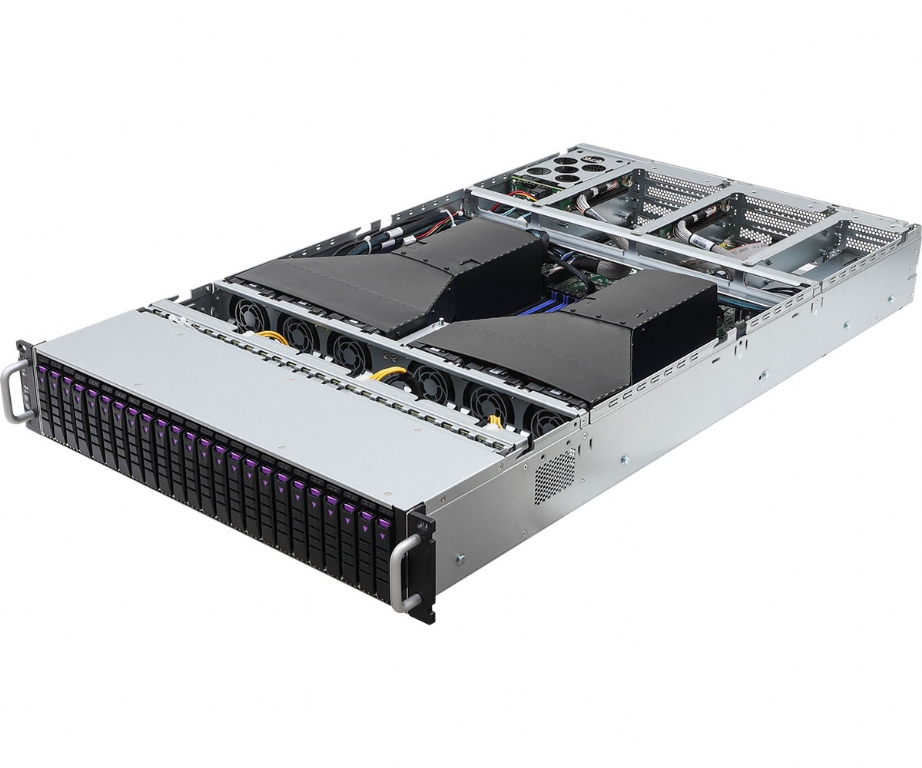

ASRock Rack 2U24E-EGS2 2U Rackmount Server Barebone - Supports Dual 4th Gen Intel Xeon Scalable CPU - 24x 2.5" Hot-Swap - Dual PSU
2U24E-EGS2
ASRock Rack 2U24E-EGS2 2U Rackmount Server Barebone - Supports Dual 4th Gen Intel Xeon Scalable CPU - 24x 2.5" Hot-Swap - Dual PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| System | |
| Form Factor | 2U Rackmount |
| Dimensions | 800 x 438 x 88 mm (31.50'' x 17.24'' x 3.46'') |
| Support MB | SP2C741D32TM3 |

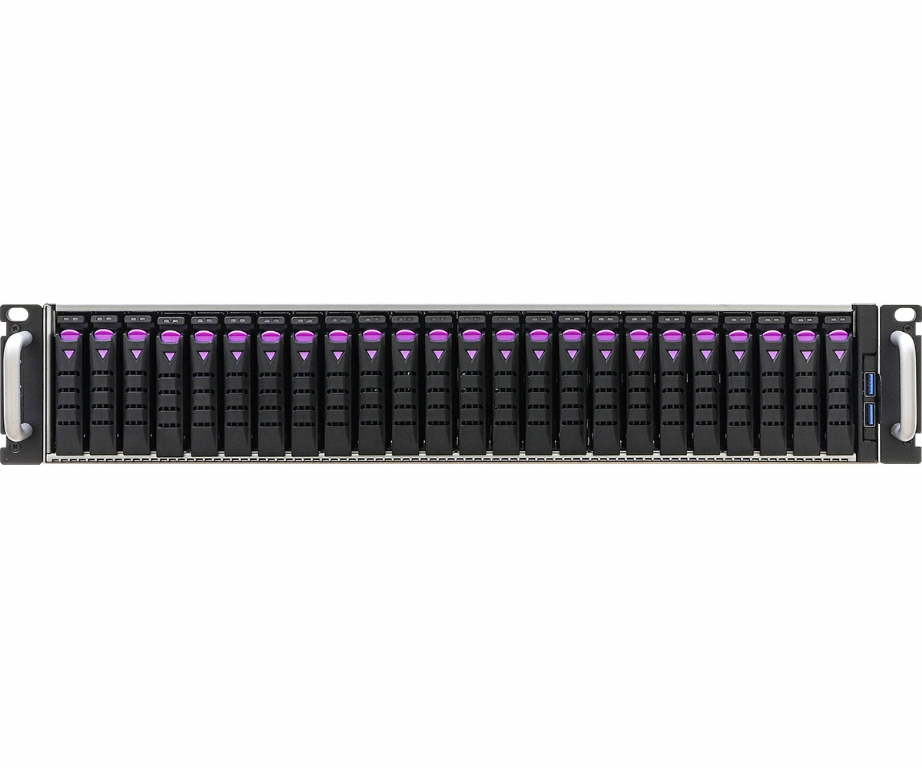

| Front Panel | |
| Buttons | Power w/ LED, ID w/ LED, System Reset |
| LEDs | System Fault |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 24 Hot-swap 2.5" NVMe drive bays |
| Front Side Backplane | three 8-ports NVME passive backplane |
| Rear Side | 2 Hot-swap 2.5'' SATA drive bays |
| Rear Side Bakplane | one 2-ports SATA backplane |
| Internal Side | 2 M-key (PCIe4.0 x4), support 22110/2280 form factor |
| Power Supply | |
| Type | 1+1 CRPS |
| Output Watts | 2700W |
| Efficiency | 80-PLUS Platinum |
| AC Input | 100-240V, 60/50Hz |
| System Fan | |
| Fan | 6 PWM fixed 60x56 mm fans |
| Processor System | |
| CPU | Supports 4th Gen Intel® Xeon® Scalable processors |
| Socket | 1+1 Socket E (LGA 4677) |
| Thermal Design Power | max. up to 305W |
| Chipset | Intel® C741 |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | 288-pin DDR5 RDIMM/ RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 64GB RDIMM-3DS: 256GB |
| Max. DIMM Frequency | 4400 MT/s (2DPC) / 4800 MT/s (1DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | 2 FHHL PCIe 5.0 x16 |
| Ethernet | |
| OCP slot | 2 OCP NIC 3.0 (PCIe 5.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST260 |

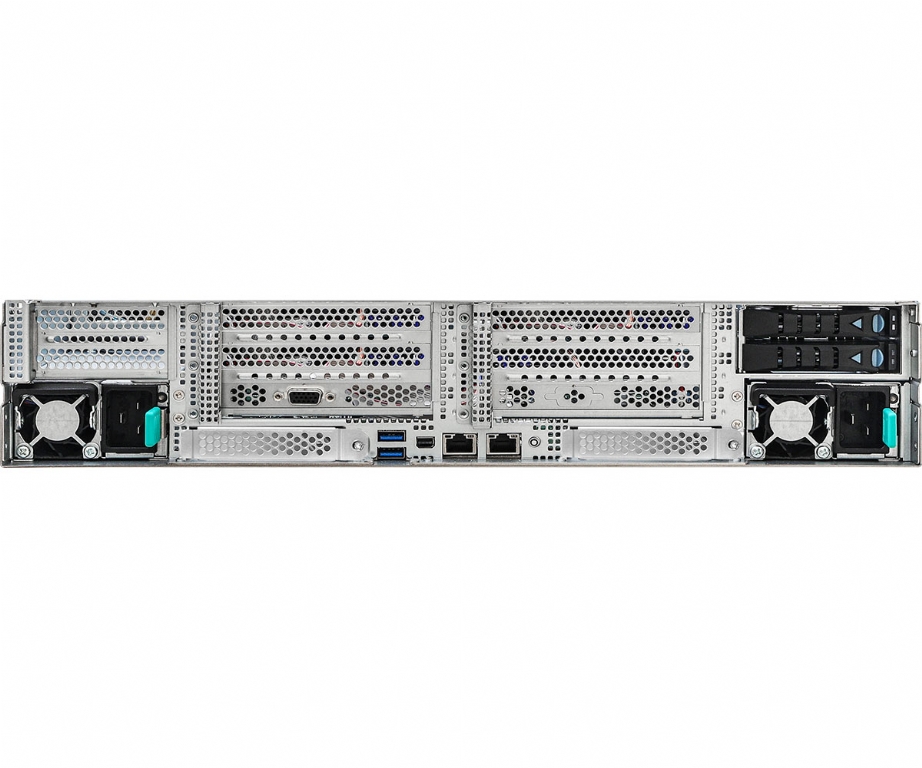

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 Mini-DP (DP/Mini-DP), 1 DB15 (VGA) |
| Serial Port | 1 RJ45 (COM) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |
| RJ45 | 1 RJ45 (COM), 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, PCH, MB, Card Side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
