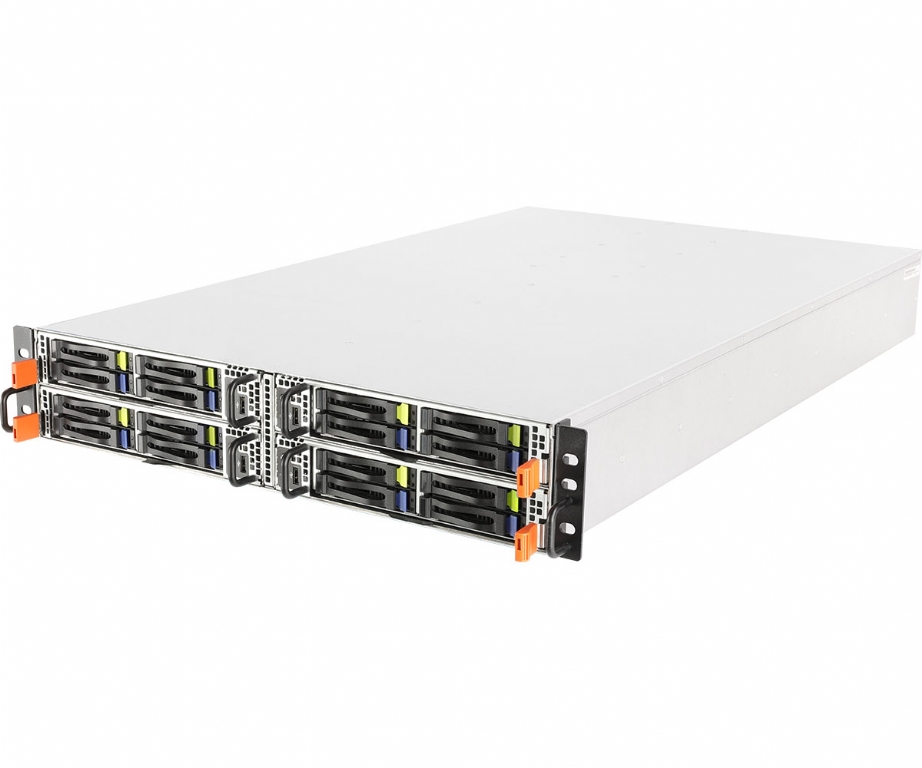

System | |
Form Factor | - 2U Rackmount |
Chassis Model | - 2U4N-F |
Dimensions | - 820 x 442.2 x 86.6mm (32.3'' x 17.4'' x 3.4'') |
Support MB | - 17”X6.5”(431.8mm X 165.1mm) |
Front Panel | |
Buttons | - Power On/Standby button(per node) in the front - System reset button(per node) in the front - UID button(per node) in the rear |
LEDs | - HDD Act/Err/Locate LED - Power LED (Front Panel per Node) - UID LED (Front Panel per Node) |
I/O Ports | - 1 x USB 2.0 ports(per node) |
External Drive Bay / Storage | |
Front Side Drive Bay | - 4x 2.5" HDD/SSD per node (all SATA or 2 x NVMe + 2 x SATA) |
Internal Side | - 2 M.2 ( (SATA/PCIe x4) 2280/22110) |
Power Supply | |
Type | - 2 (1+1) RPSU |
Output Watts | - 1600W |
Efficiency | - Platinum |
System Fan | |
Fan | - 40x56mm x16 |
Physical Status | |

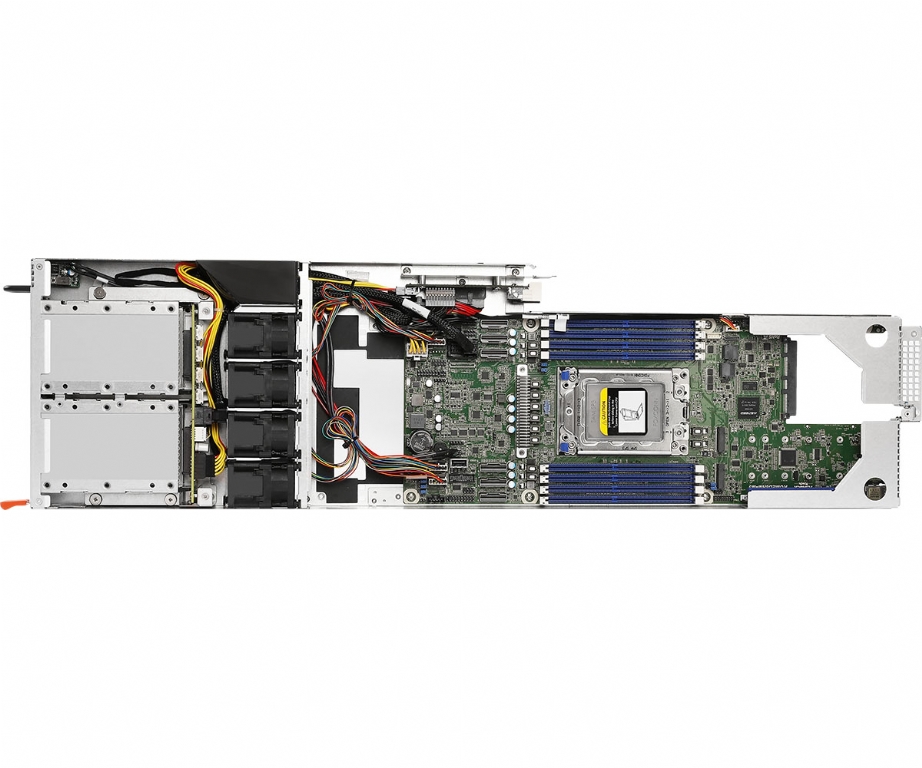

Form Factor | - Half width |
Dimensions | - 6.5'' × 17" |
Processor System | |
CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
Socket | - Single Socket SP3 LGA 4094 |
Thermal Design Power | - 120W~225W |
System Memory | |
Supported DIMM Quantity | - 8 DIMM slots |
Supported Type | - 1 DIMM per channel. DDR4 RDIMM, LRDIMM up to 3200MHz |
Voltage | - 1.2V |
PCIe Expansion Slots (SLOT7 close to CPU) | |
PCIe x 16 | - 2 PCIe4.0 x16 (Low Profile card) |
Server Management | |
BMC Controller | - ASPEED AST2500 |
IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
Features | - Watch Dog - NMI |
Graphics | |
Controller | - ASPEED AST2500 |

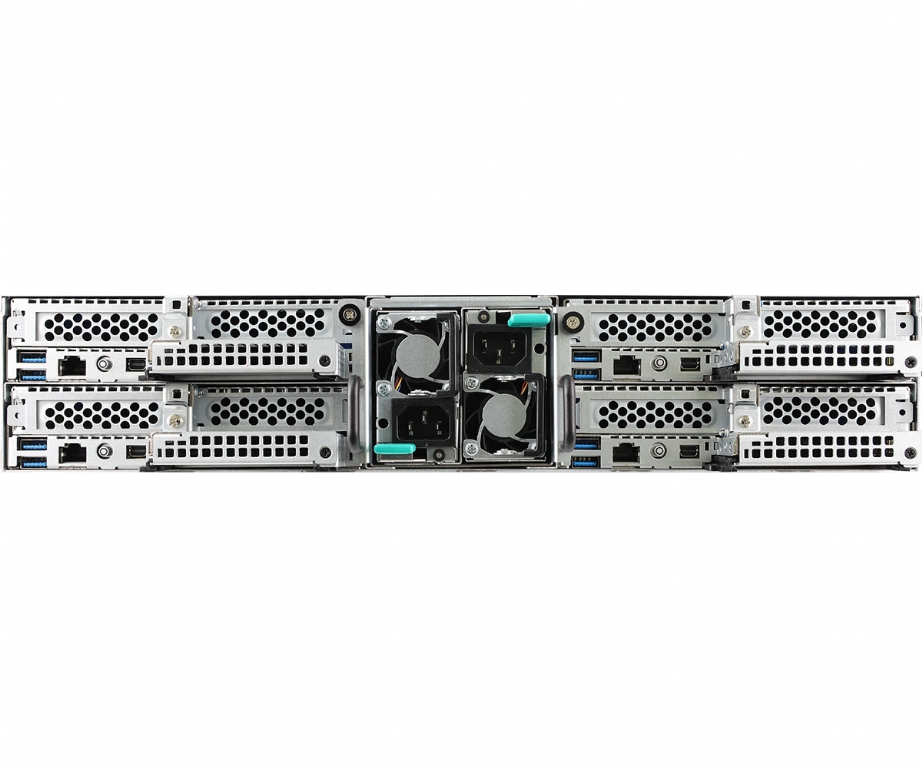

Rear I/O | |
UID Button/LED | - 1 UID button w/ LED |
VGA Port | - 1 mini DIsplayPort |
USB 3.2 Gen1 Port | - 2 Type-A (USB3.2 Gen1) |
RJ45 | - 1 (IPMI) Lan port (RJ45) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
Internal Connector/Headers | |
Power Connector | - 2x 8-pin |
Auxiliary Panel Header | - 1(CI, FSMB, 2FLANLED, LOCBLED) |
COM Header | - 1 |
Fan Header | - 4x 6 pin system Fan |
TPM Header | - 1 |
IPMB Header | - 1 |
USB 3.2 (Gen1) Header | - 1 header (19-pin, 2 USB3.2 Gen1) |
Type A USB 2.0 Port | - 1 Type-A (USB2.0) |
Hardware Monitor | |
Temperature | - CPU Temperature Sensing - System Temperature Sensing - MB/Card Side Temperature Sensing |
Fan | - Fan Tachometer - Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
Voltage | - Voltage Monitoring:+12V, +5V, +3.3V, VSOC, VCPU, VPPM_ABCD, VPPM_EFGH, VCCM_ABCD, VCCM_EFGH, +BAT, 3VSB, 5VSB, +1.8V, +1.8VSB, MEZZ_P1_+3V |
Watchdog | - Yes |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
