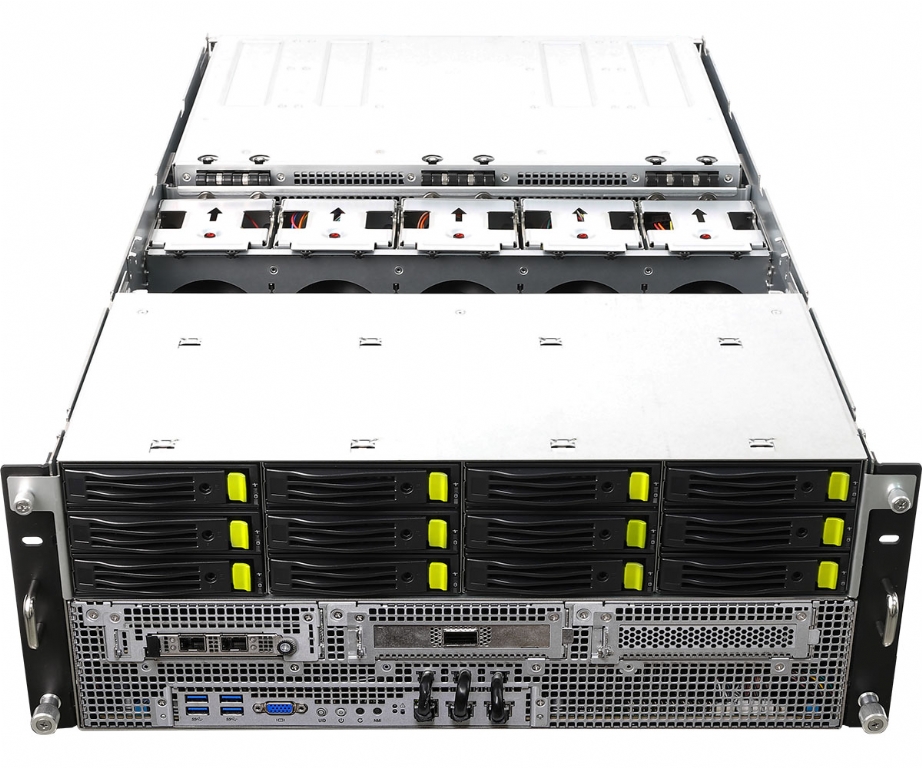

ASRock Rack 4U10G-ROME2/2T Rackmount Server Barebone - Supports Dual AMD ROME 3rd Gen CPU - 10x GPU Support - 12x Hot-Swap - 3+1 PSU
4U10G-ROME2/2T
ASRock Rack 4U10G-ROME2/2T Rackmount Server Barebone - Supports Dual AMD ROME 3rd Gen CPU - 10x GPU Support - 12x Hot-Swap - 3+1 PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| System | |
| Form Factor | 4U Rackmount |
| Dimensions | 845 x 438 x 176.5mm (33.3" x 17.2" x 6.9") |
| Support MB | ROME2D32GM-2T |

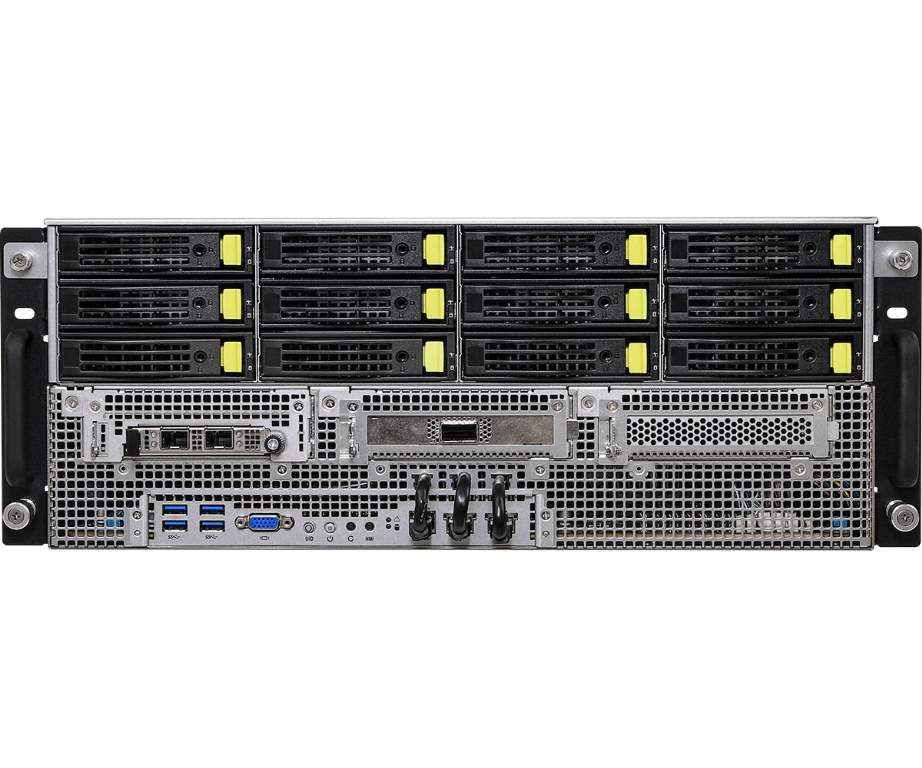

| Front Panel | |
| Buttons | Power button w/ LED Reset button NMI button UID button w/ LED |
| LEDs | System fault LED HDD activity LED |
| I/O Ports | 1 DB15 (VGA) 4 USB Type-A (USB3.2 Gen1) 2 RJ45 (10GbE) by Intel® X550-AT2, shares with Rear Panel I/O |
| IPMI LAN | 1 dedicated IPMI LAN, shares with Rear Panel I/O |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 12 Hot-swap 3.5" drive bays, supports 12 NVMe (PCIe4.0 x4) / SATA drives supports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card |
| Front Side Backplane | three 4-port NVMe/SAS/SATA passive backplanes |
| Internal Side | 1 M-key (PCIe4.0 x4) supports 22110/2280 form factor |
| Power Supply | |
| Type | 3+1 CRPS |
| Output Watts | 1600W |
| Efficiency | 80-PLUS Platinum |
| AC Input | Lowline: 100-127V, Highline: 200-240V |
| System Fan | |

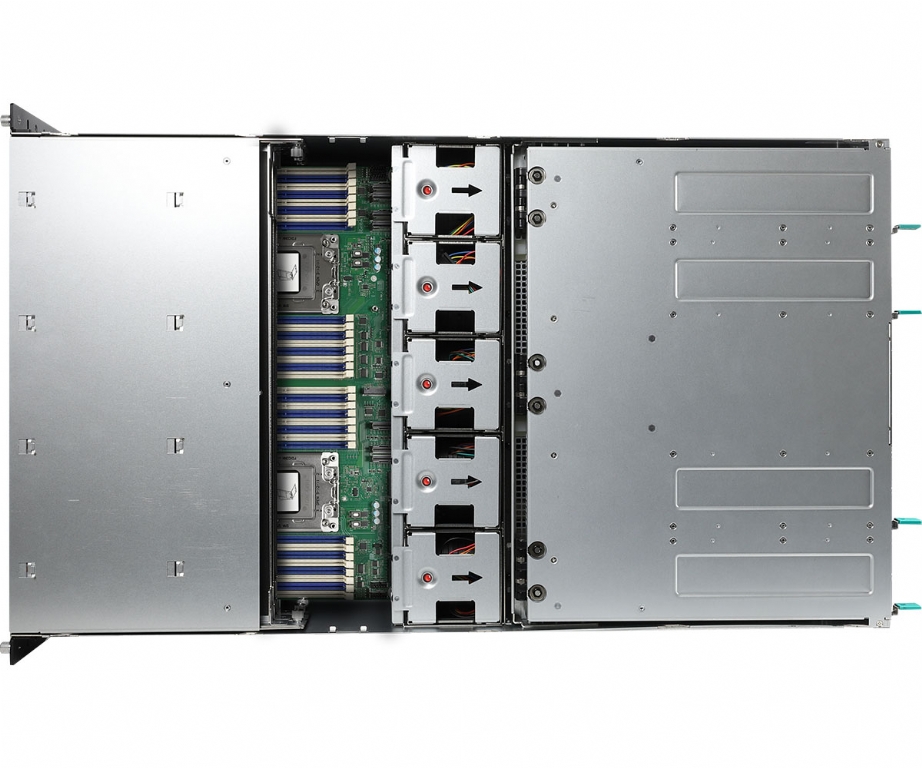

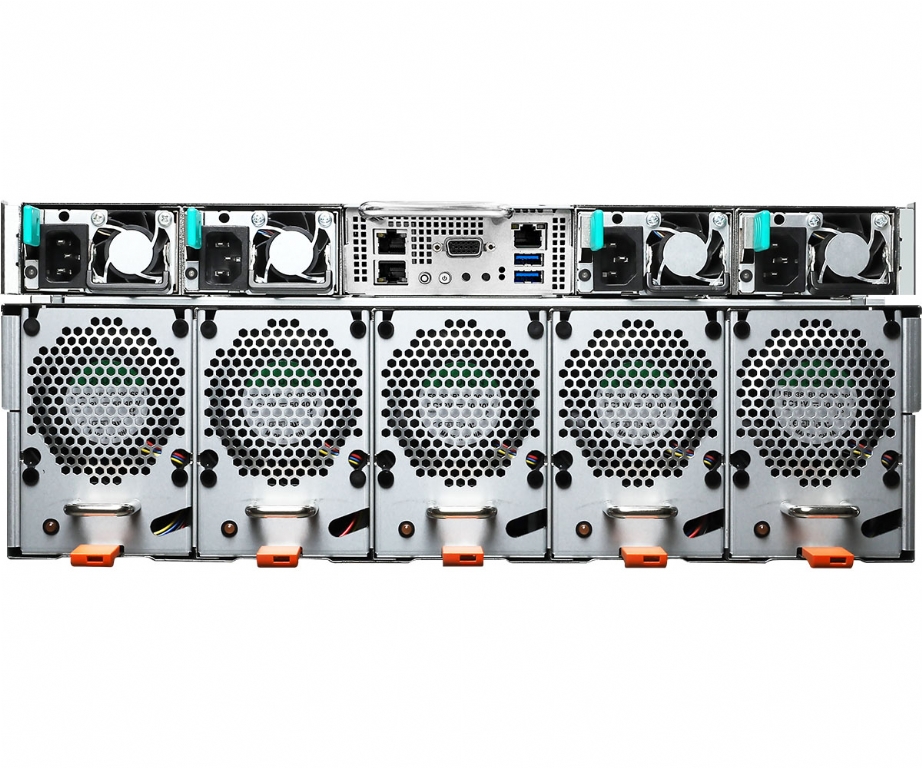

| Fan | 5 Middle Hot-swap 80x80mm fans, 5 Rear Hot-swap 80x38mm fans |
| Fail LED | Abnormal(DC on): LED ON (Solid Red) Normal: LED OFF |
| GPGPU card | |
| GPGPU Watts | max. 350W per card |
| Support GPGPU | NVIDIA® A100 PCIe |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
| Socket | 1+1 SP3 (LGA4094) |
| Thermal Design Power | 280W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | DDR4 288-pin RDIMM, LRDIMM |
| Max. Capacity per DIMM | RDIMM: up to 64GB, LRDIMM: up to 256GB |
| Max. DIMM Frequency | RDIMM/ LRDIMM: up to 3200 MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 10 FHFL dual-slot PCIe4.0 x16 on 4U10G_SWB96 or 20 FHFL single-slot PCIe4.0 x8 on 4U10G_SWB96 (attached to PEX88096) 1 FHFL single-slot PCIe4.0 x16 on 4U10G_SWB96 (direct link to CPU) Front: 1 FHHL PCIe4.0 x16 via 4UXG_SL2P 1 OCP3.0 PCIe4.0 x16 via 4UXG_SL2OCP3 *Please contact ASRock Rack for other required configuration |
| PCIe x 8 | Front: 1 FHHL PCIe4.0 x8 via 4UXG_SL2P |
| Additional PCIe switch | 2 PEX88096 |
| TPM | |
| TPM support | 1 (17-pin, LPC) |
| Server Management | |
| BMC Controller | ASPEED AST2500: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 4GB |

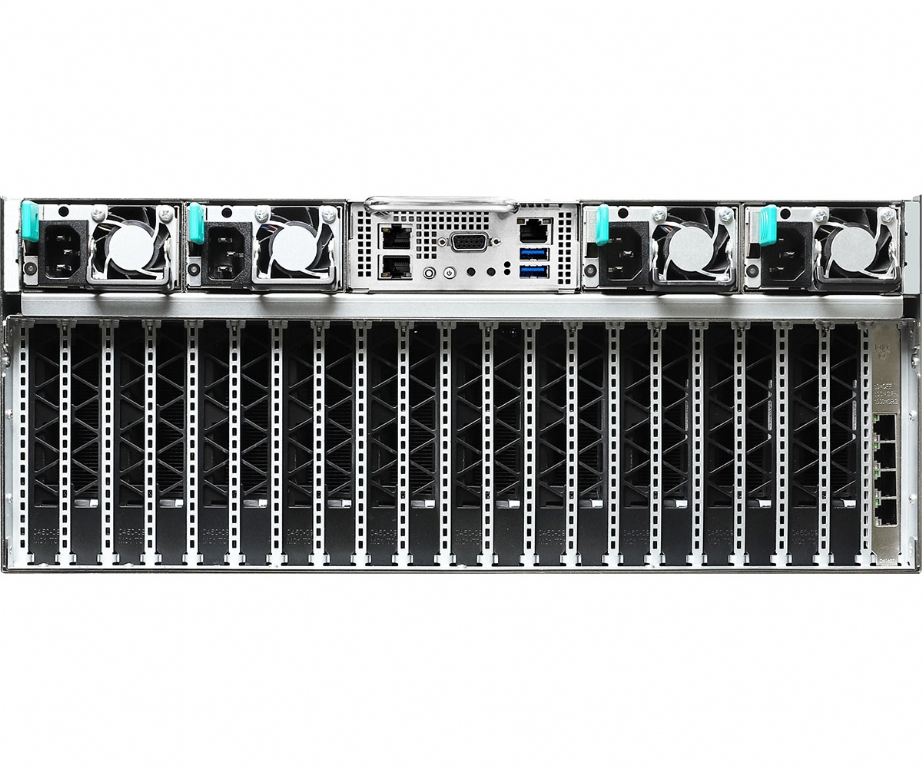

| Rear I/O | |
| UID Button/LED | UID button w/ LED |
| Other Button/LED | Power button w/ LED Reset button NMI button System fault LED HDD activity LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) by Intel® X550-AT2, shares with front panel 1 dedicated IPMI LAN, shares with front panel |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing System Temperature Sensing Card Side Temperature Sensing |
| Fan | Middle/ Rear Fan Tachometer Middle/ Rear Fan Multi-Speed Control |
| Voltage | Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
