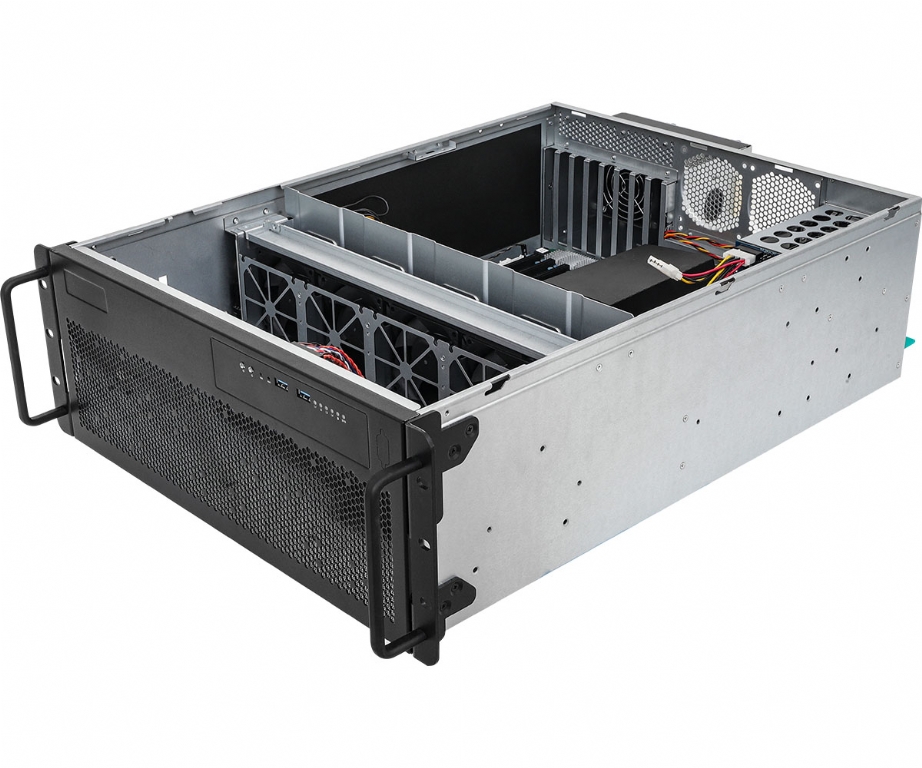

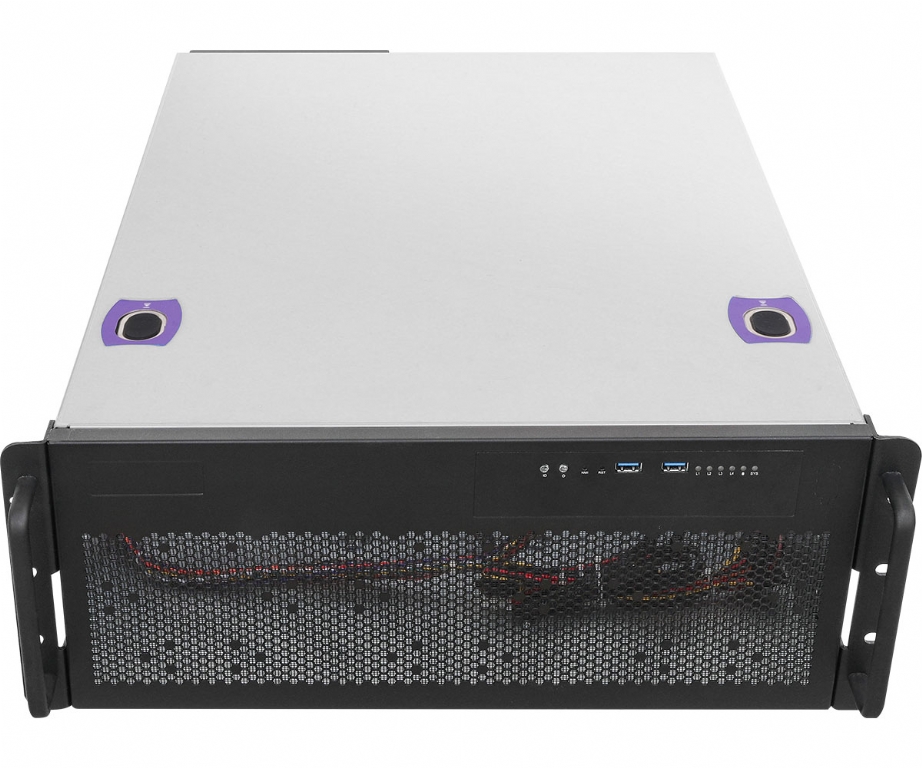

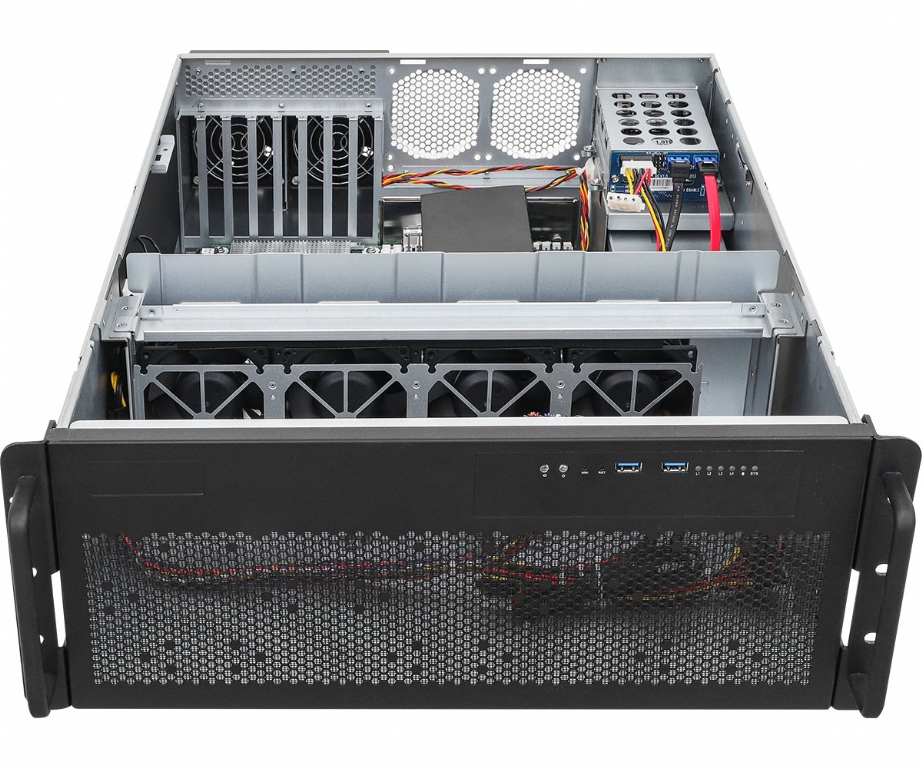

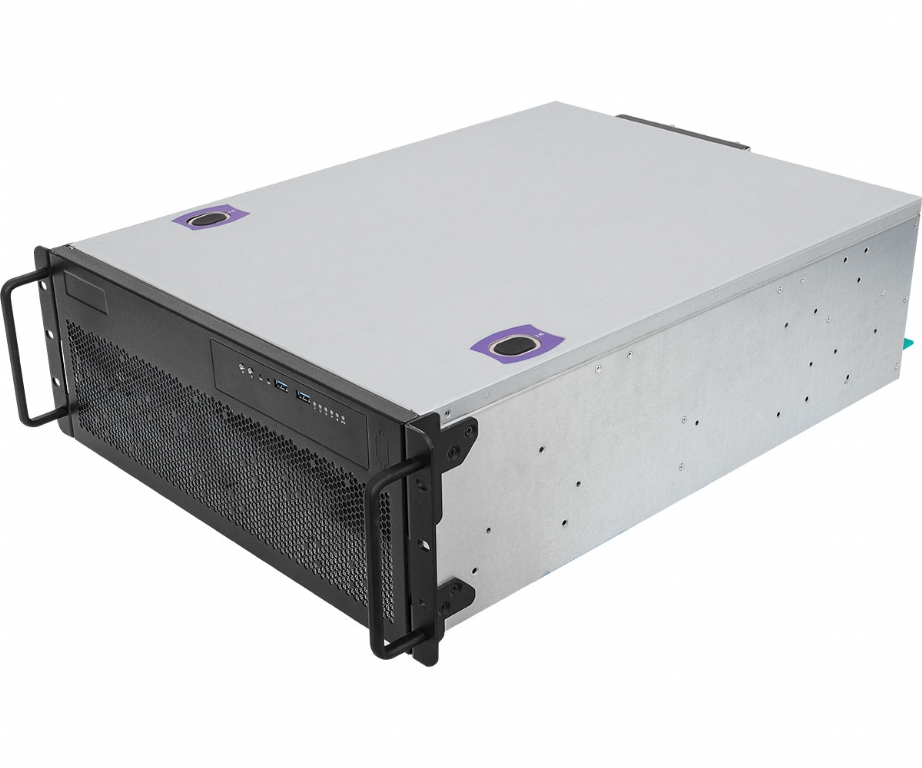

ASRock Rack 4U4G-WRX80/2T Rackmount Server Barebone - Supports Single AMD Threadripper PRO CPU - Multi-GPU Support - Dual PSU
4U4G-WRX80/2T
ASRock Rack 4U4G-WRX80/2T Rackmount Server Barebone - Supports Single AMD Threadripper PRO CPU - Multi-GPU Support - Dual PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| System | |
| Form Factor | 4U Rackmount |
| Dimensions | 596 x 430.4 x 174.8 mm (23.5'' x 16.9'' x 6.9'', without GPU fans) |
| Support MB | WRX80D8-2T |
| Front Panel | |
| Buttons | Power w/ LED, UID w/ LED, NMI |
| LEDs | LAN Activity, HDD Activity, System Event |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Rear Side | 2 hot-swap 2.5'' SATA drive bays |
| Internal Side | 2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor [FCH] |
| Power Supply | |
| Type | 1+1 CRPS |
| Output Watts | 1008W @ 100-127V input / 1600W @ 200-240V input |
| Efficiency | 80-PLUS Platinum |
| AC Input | Low-line: 100-127V, 47-63Hz ; High-line: 200-240V, 47-63Hz |
| System Fan | |
| Fan | 4 PWM fixed 80x38 mm fans 2 PWM fixed 80x38 mm GPU fans (optional) |
| Processor System | |
| CPU | Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX |
| Socket | Single Socket sWRX8 (LGA4094) |
| Chipset | AMD WRX80 |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB RDIMM-3DS*: up to 256GB *RDIMM-3DS Max. memory capacity is to be validated |
| Max. DIMM Frequency | ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS*: max. 3200MHz *RDIMM-3DS Max. memory frequency is to be validated |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Front: 4 FHFL dual-slot PCIe4.0 x16 or 7 FHFL single-slot PCIe4.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® X710-AT2: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, DRAM, MB, Card Side, Chipset Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
