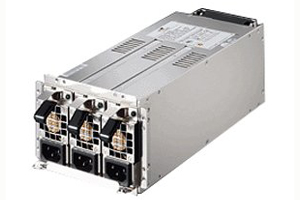

Zippy 650W 2+1 Redundant Server PSU

R3G-6650P
Zippy 650W 2+1 Redundant Server PSU
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?

Frequently bought together

SC-03A 600mm Rail Kit for 2U to 4U Chassis
SC-03A 600mm Rail Kit for 2U to 4U Chassis
£33.98 ex VAT
(£40.78 inc VAT)
Supermicro 4-Pin Fan Extension Cable Lead Free 22cm
AIC 2U-4U 20inch Slider Rails for Short/Midsize Chassis
4U Server Case w/ 24x 3.5
Product Description

3u 650w 2+1 Redundant


300.00x127.00x82.00  (mm)
11.81x5.00x3.23  (inch)


VOLTAGE:  90 ~ 264 VAC FULL RANGE



Output Voltage Output Current Min. Output Current Max. Output Current Peak Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
5V 3 60.00   ± 5% ± 1% 50mV
12V 2 40   ± 5% ± 1% 100mV
-5V 0.05 1   ±10% ± 1% 150mV
-12V 0.05 1   ±10% ± 1% 150mV
3.3V 1 40   ± 5% ± 1% 50mV
+5VSB 0.1 2.5   ± 5% ± 1% 50mV

REMARKS: *TOTAL CURRENT OF +5V AND + 3.3V NOT EXCEED 70 A *TOTAL +5V AND 3.3V AND 12V POWER NOT EXCEED 630 W
*Active PFC (full range), MEET IEC-1000-3-2 CLASS D
*12V Max. Current : 40A
*TEMPERATURE RANGE : OPERATING 0℃ ~ 40℃, STORAGE –20℃ ~ 70℃
* HUMIDITY:OPERATING:20%-95%, NON-OPERATING:10%-95%
* REMARKS:85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS
*EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
*SAFETY: UL 60950, CSA 22.2 NO/ 60950, TUV IEC 60950
*2+1 HOT-SWAPPABLE / HOT-PLUGGABLE REDUNDANCY FUNCTION
*Cooling : THREE 40 mm DC FANS ( ONE IN EACH MODULE ); ONE 80 mm DC FAN ( REAR SIDE )
*AC INLET IN EACH MODULE
*SERIAL ATA OPTIONAL
*DIMENSION: 276*127*82 mm(W/O FAN); 300*127*82(W/FAN)

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
