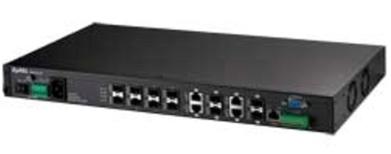

ZyXEL MGS-3712F 12 port Gigabit Layer 2 Managed Metro Switch with 4xDual-personality GbE

The ZyXEL Metro Switch 3000 Series consists of four switches: the MGS-3712/MGS-3712F, MES-3728, and ES-3124F. The Metro Switch 3000 Series is specially designed for service providers to deliver profitable Ethernet services. With the high-performance hardware platform, service providers can easily extend network topologies while enabling robust security, QoS and management functions to help customers fulfilling differentiated needs for Metro Ethernet services. The Metro Ethernet Forum (MEF) is a global industry alliance comprised of more than 145 active members representing Carrier Ethernet industry groups. The forum develops technical specifications and implementation agreements to promote interoperability and deployment of Carrier Ethernet services worldwide. The Metro Switch 3000 Series is aligned with carrier-class standards for Ethernet Private Line (EPL), Ethernet Virtual Private Line (EVPL) and Ethernet LAN (E-LAN) of Metro Ethernet Forum (MEF), and the Series has been certified as MEF-9 and MEF-14 compliant. Consistent service quality and reliable connecting ability in a converged network is the key for service providers to win customers and build loyalty; therefore the ability to control traffic flow and set traffic policy becomes more critical than ever. The Metro Switch 3000 Series offers wire-speed flow control that classifies and prioritizes the incoming packets according to the predefine QoS policies that meet requirements of service providers.

In terms of classification, the Differentiated Services Code Point (DSCP) field and the 802.1p class of service (CoS) field are identified to assess the priority of incoming packets. Classification and reclassification can be based on criteria as specific as rules based on IP, MAC addresses, VLAN ID or TCP/UDP port number. For bandwidth management, the Metro Switch 3000 Series provides 8 priority queues per port for different types of traffics, allowing service providers to set rule-based rate limitations that take full advantage of constrained network resources and guarantee the best performance. Avoiding subscribers affecting each other on a shared network or shared device is a major concern for service providers. The Metro Switch 3000 Series offers a complete set of security features to protect user data while administrating the traffics. The intrusion lock function detects the 'plugged' and 'unplugged' status change of Ethernet cables, and the switch would deactivate a specific port automatically if needed, and the 802.1x authentication can secure the network from unauthorized users. Port security provides the ability to deny unauthorized users from accessing the network. Moreover, the 802.1x feature cooperating with RADIUS is useful to prevent unauthorized access based on username and password (or other credentials) and acts as powerful access control for converged networks with mixed wired and wireless access. The Metro Switch 3000 Series provides a multilayer (L2/L3/L4) ACL suite of sophisticated policy-based control mechanisms that enables service providers to deploy easily based on actual network environment needs via a Web GUI or command line interface to prevent abnormal or illegal access. The policies can be defined to deny packets based on source and destination MAC addresses, IP addresses or TCP/UDP ports

Features

• 16K MAC address table
• 16K MAC address table
• Policy-based QoS optimizes multi-service quality
• Policy-based QoS optimizes multi-service quality
• IGMP snooping v1, v2, v3, MVR
• IGMP snooping v1, v2, v3, MVR
• Multilayer-aware (L2/L3/L4) ACL for security protection
• Multilayer-aware (L2/L3/L4) ACL for security protection
• High redundancy and resilient architecture with RSTP, port trunking 'Front access' design; external alarm input/output block (MGS-3712, MGS-3712F, MES-3728 only)
• High redundancy and resilient architecture with RSTP, port trunking 'Front access' design; external alarm input/output block (MGS-3712, MGS-3712F, MES-3728 only)
• Temperature harden & protection against humidity and dust (MGS-3712, MGS-3712F, MES-3728 only)
• Temperature harden & protection against humidity and dust (MGS-3712, MGS-3712F, MES-3728 only)
• Removable fan modular (MGS-3712, MGS-3712F, MES-3728 only)
• Removable fan modular (MGS-3712, MGS-3712F, MES-3728 only)
• Intelligent fan control for power saving (MGS-3712, MGS-3712F, MES-3728 only)
• Intelligent fan control for power saving (MGS-3712, MGS-3712F, MES-3728 only)
• AC/DC dual power input flexible for service provider
• AC/DC dual power input flexible for service provider

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T Ethernet � IEEE 802.3u 100 Base-Tx Ethernet � IEEE 802.ab 1000 Base-T Ethernet � IEEE 802.ah 1000BASE-BX10-U Ethernet � IEEE 802.ah 1000BASE-BX10-D Ethernet � IEEE 802.3z � IEEE 802.3x Flow control � IEEE 802.1D Spanning tree protocol � IEEE 802.1w Rapid Spanning tree protocol � IEEE 802.1s Multiple Spanning tree protocol � IEEE 802.1p Class of service, priority protocols � IEEE 802.1Q VLAN tagging � IEEE 802.1x Port Authentication � IEEE 802.3ad LACP aggregation
Standards Compliance	IEEE 802.3 10Base-T Ethernet � IEEE 802.3u 100 Base-Tx Ethernet � IEEE 802.ab 1000 Base-T Ethernet � IEEE 802.ah 1000BASE-BX10-U Ethernet � IEEE 802.ah 1000BASE-BX10-D Ethernet � IEEE 802.3z � IEEE 802.3x Flow control � IEEE 802.1D Spanning tree protocol � IEEE 802.1w Rapid Spanning tree protocol � IEEE 802.1s Multiple Spanning tree protocol � IEEE 802.1p Class of service, priority protocols � IEEE 802.1Q VLAN tagging � IEEE 802.1x Port Authentication � IEEE 802.3ad LACP aggregation
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 65�C
Environmental	Operating Temperature 0 to 65�C
General
Model Name	MGS-3712
Product Type	Managed Switch
Model Name	MGS-3712
Product Type	Network Switch
Barcode	4718937507771
Barcode	4718937507771
Performance
MAC Addresses	16,000
MAC Addresses	16,000
Physical
Case Colour	Black
Case Colour	Black
Dimensions	43.8cm (W) x 22.5cm (D) x 4.4cm (H) - Weight 3.4kg
Dimensions	43.8cm (W) x 22.5cm (D) x 4.4cm (H) - Weight 3.4kg
System
Management Capabilities	iStacking: Embedded web-based interface. � Cisco like Command Line Interface via telnet or local console � Text-based configuration profile for massive deployment � Support standard Web-based browser � SNMP v2c,v3 manageable � RMON for system and performance monitoring � Telnet � Out-of -band MGMT Port � F/w upgrade, configuration backup/restore via ftp � Alarm led indicator for early warning of hardware troubles � Send system trap to trap server � IEEE802.1ag CFM � Selective QinQ
Management Capabilities	iStacking: Embedded web-based interface. � Cisco like Command Line Interface via telnet or local console � Text-based configuration profile for massive deployment � Support standard Web-based browser � SNMP v2c,v3 manageable � RMON for system and performance monitoring � Telnet � Out-of -band MGMT Port � F/w upgrade, configuration backup/restore via ftp � Alarm led indicator for early warning of hardware troubles � Send system trap to trap server � IEEE802.1ag CFM � Selective QinQ
Certifications	UL 60950-1 � CSA 60950-1 � EN 60950-1 � IEC 60950-1 � FCC Part15 (Class A) � CE EMC (Class A)
Certifications	UL 60950-1 � CSA 60950-1 � EN 60950-1 � IEC 60950-1 � FCC Part15 (Class A) � CE EMC (Class A)
